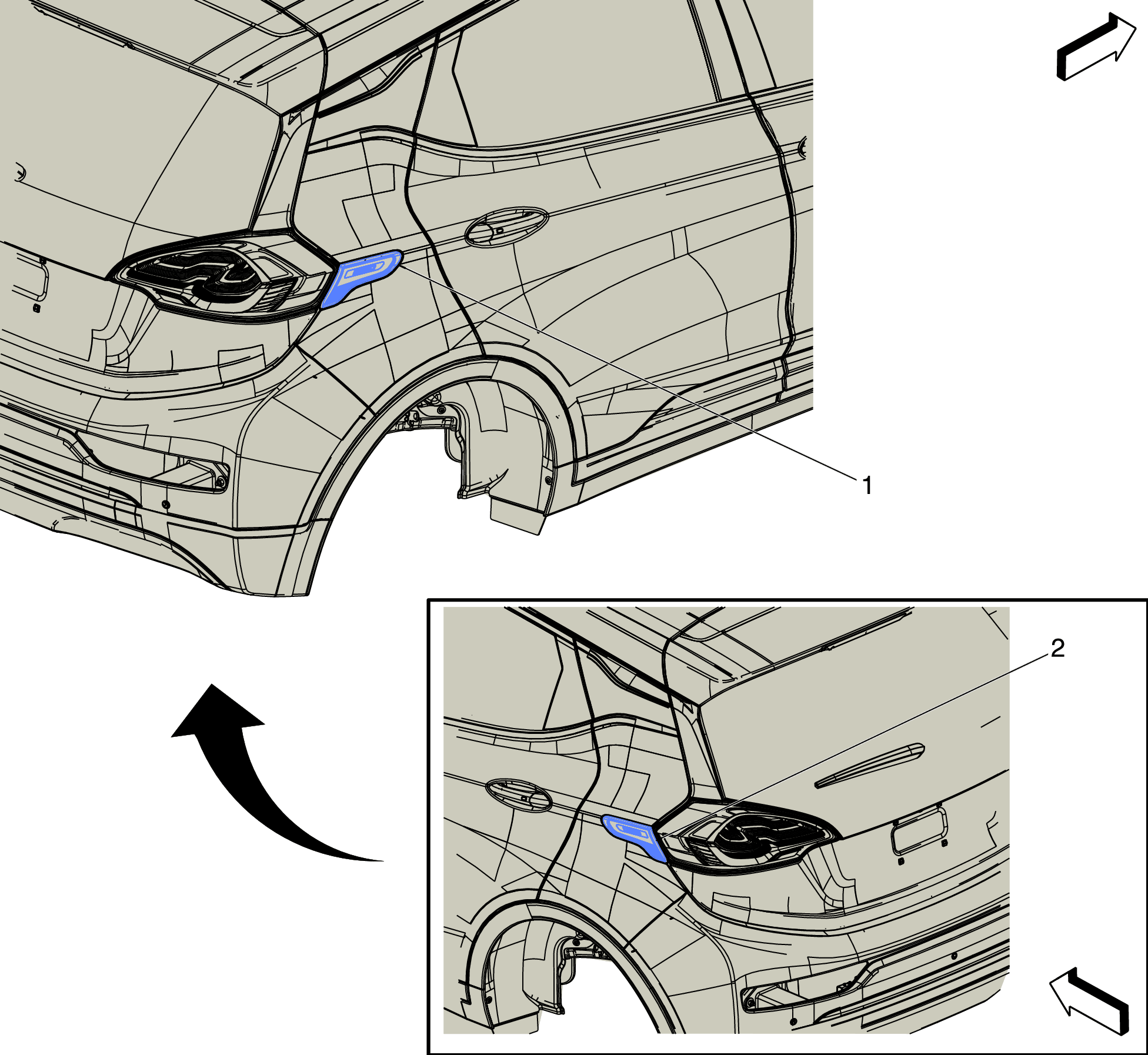

Left and Right Rear Vehicle Components

GM4531110Courtesy of GENERAL MOTORS COMPANY
Left and Right Rear Vehicle Components

Items
1. E2RR Side Marker Lamp - Right Rear (TW5) E2RR Side Marker Lamp - Right Rear (TW5)
2. E2LR Side Marker Lamp - Left Rear (TW5) E2LR Side Marker Lamp - Left Rear (TW5)
