Driver or Passenger Seat Removal and Installation

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Disconnect the electrical connectors.

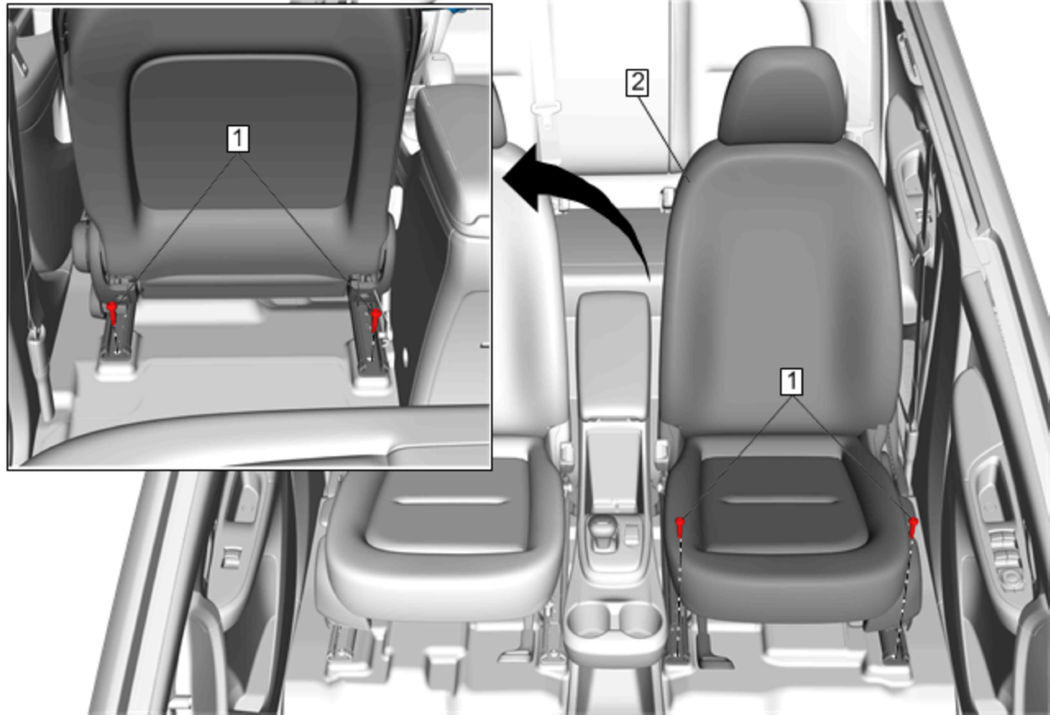

1	Front Seat Mounting Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) NOTE: Adjust the seat forward or rearward to access the bolts.
2	Driver or Passenger Seat Procedure Enable the SIR system. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Preliminary Procedures

Front Seat Mounting Bolt [4x]

CAUTION:

Tighten
45 N.m (33 lb ft)

NOTE:

Adjust the seat forward or rearward to access the bolts.

Driver or Passenger Seat
Procedure
Enable the SIR system. SIR Disabling and Enabling
