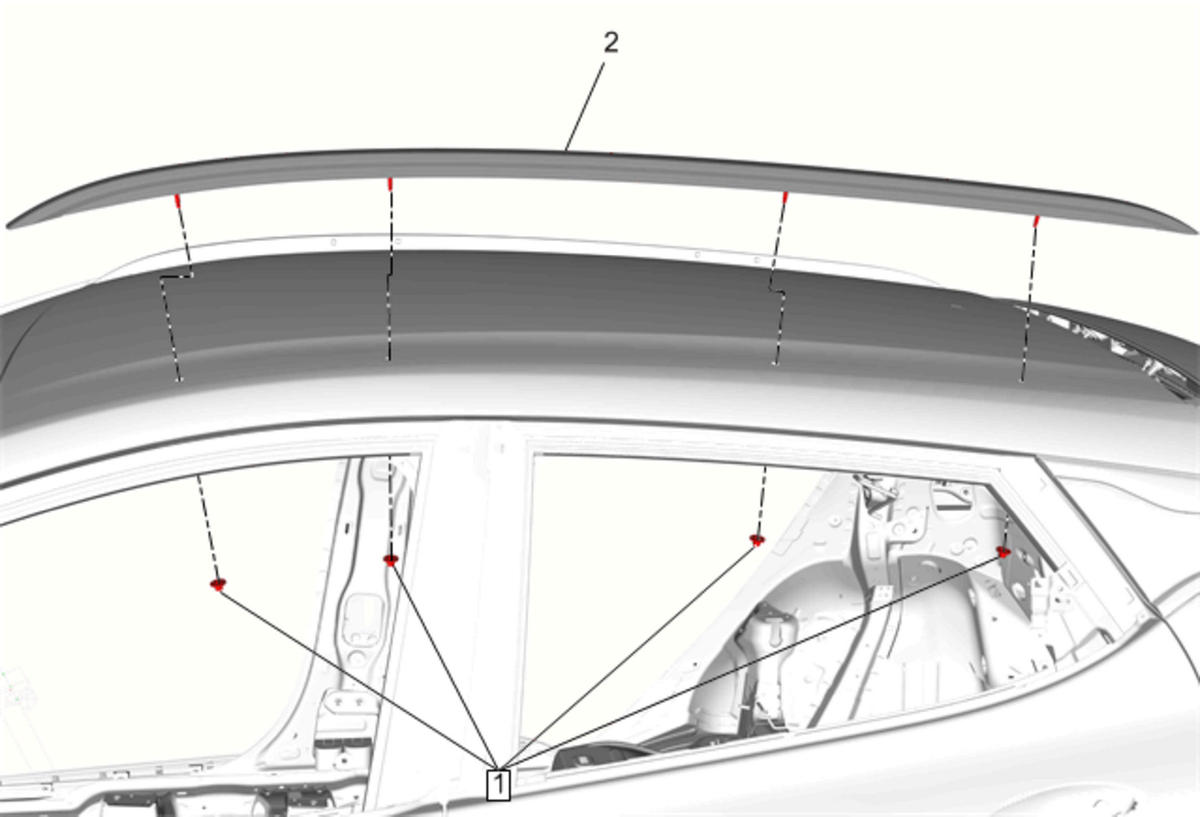

Luggage Carrier Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement |
|
| 1 | Luggage Carrier Nut [4x]
CAUTION:
Tighten 9 N.m (80 lb in) |
| 2 | Luggage Carrier Side Rail |
