Right Side of Passenger Compartment Harness Routing

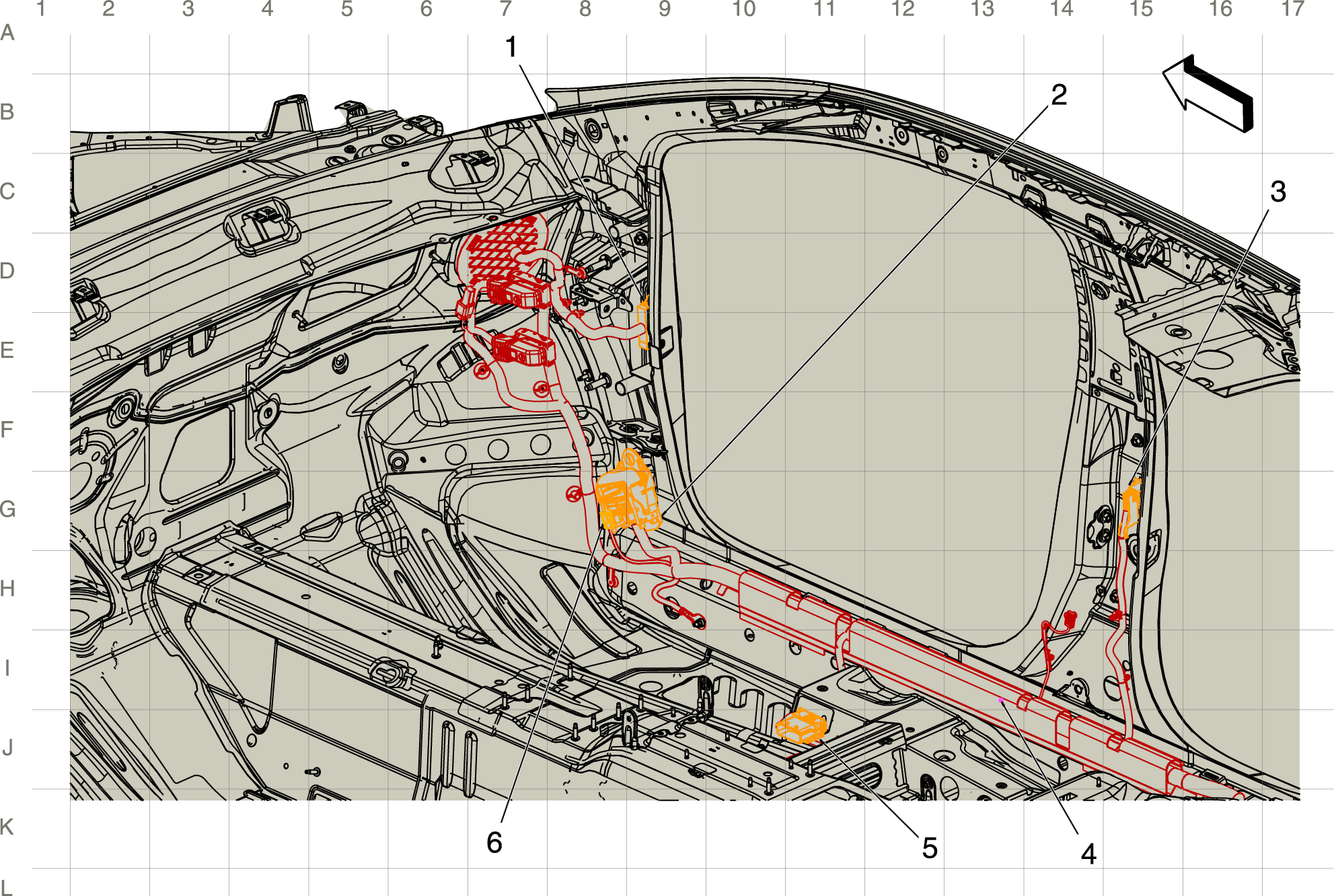

Fig 1: Right Side of Passenger Compartment Harness Routing
GM4165869Courtesy of GENERAL MOTORS COMPANY
Items
1. X600 X600 Passenger Door Harness to Body Harness
2. X275 X275 Instrument Panel Harness to Body Harness
3. X800 X800 Right Rear Door Harness to Body Harness
4. J117
5. X320 X320 Driver Seat Harness to Body Harness
6. X211 X211 Body Harness to Instrument Panel Harness
