Right Rear of Passenger Compartment Harness Routing

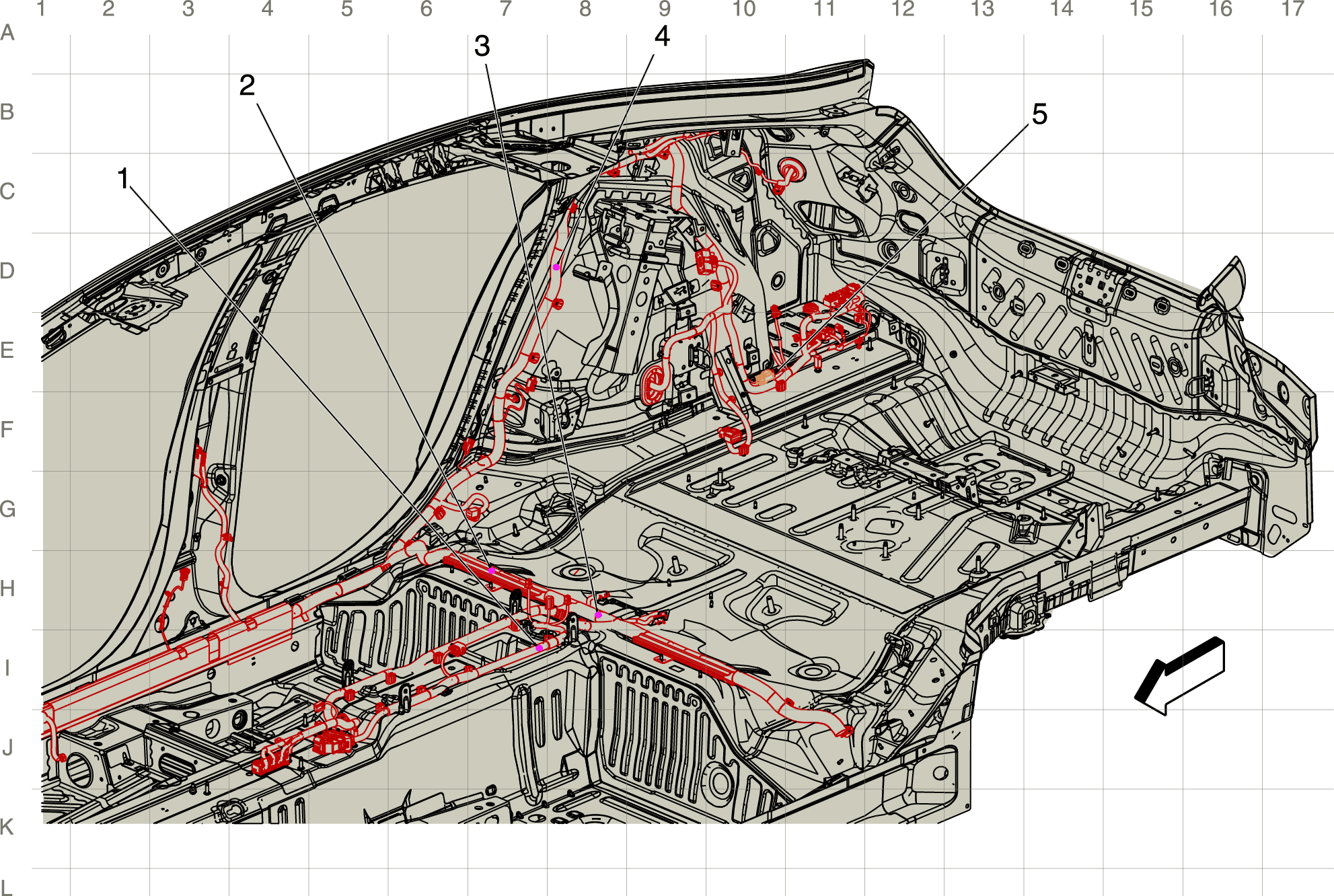

Fig 1: Right Rear of Passenger Compartment Harness Routing
GM4165872Courtesy of GENERAL MOTORS COMPANY
Items
1. J310
2. J222 (KA1/KA6)
3. J376
4. J377
5. X406 X406 Body Harness to Body Harness
