Right Rear Door Harness Routing
Right Rear Door Harness Routing

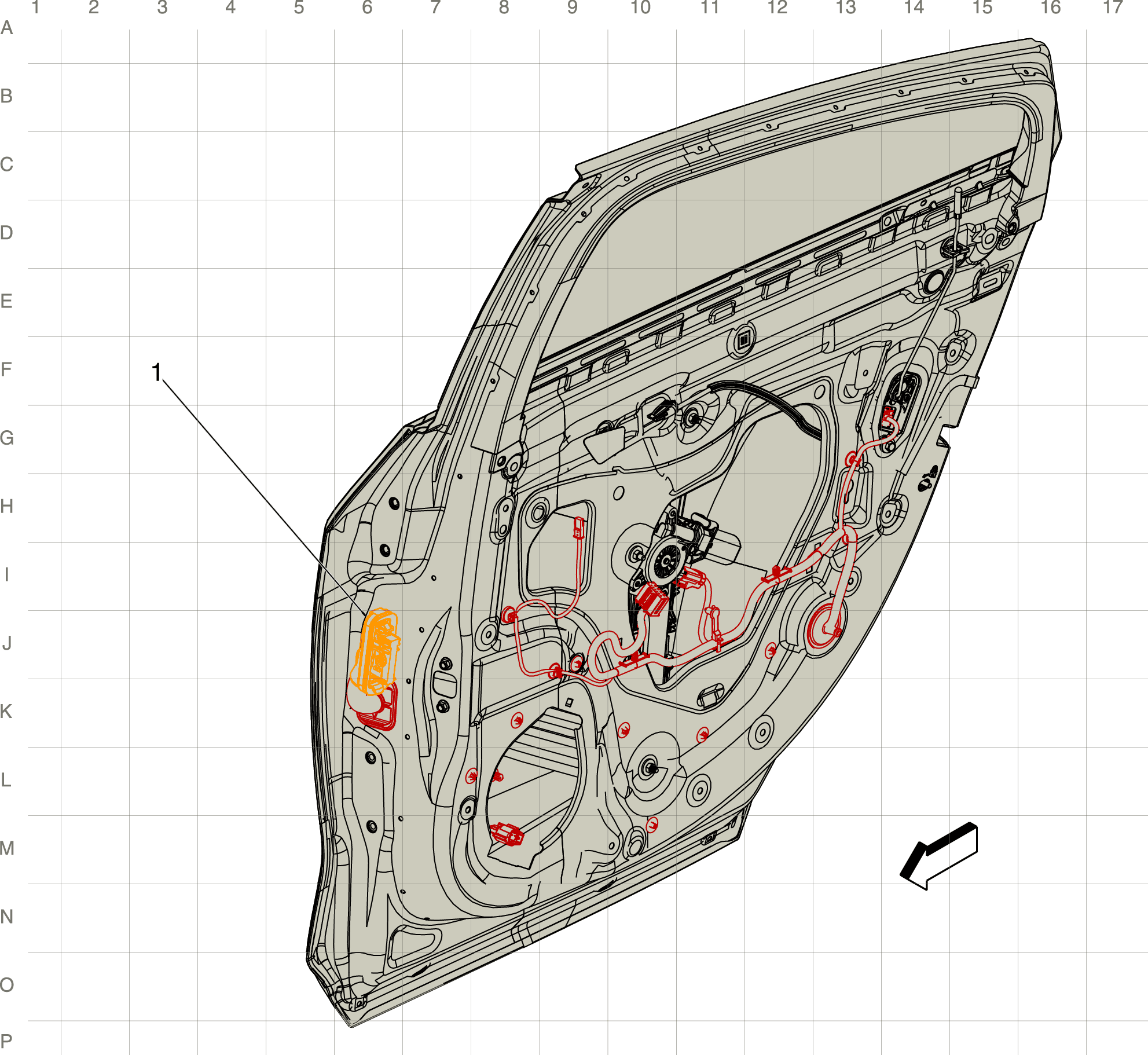

Fig 1: Right Rear Door Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1. X800
X800 Right Rear Door Harness to Body Harness
