Right Front Door Harness Routing

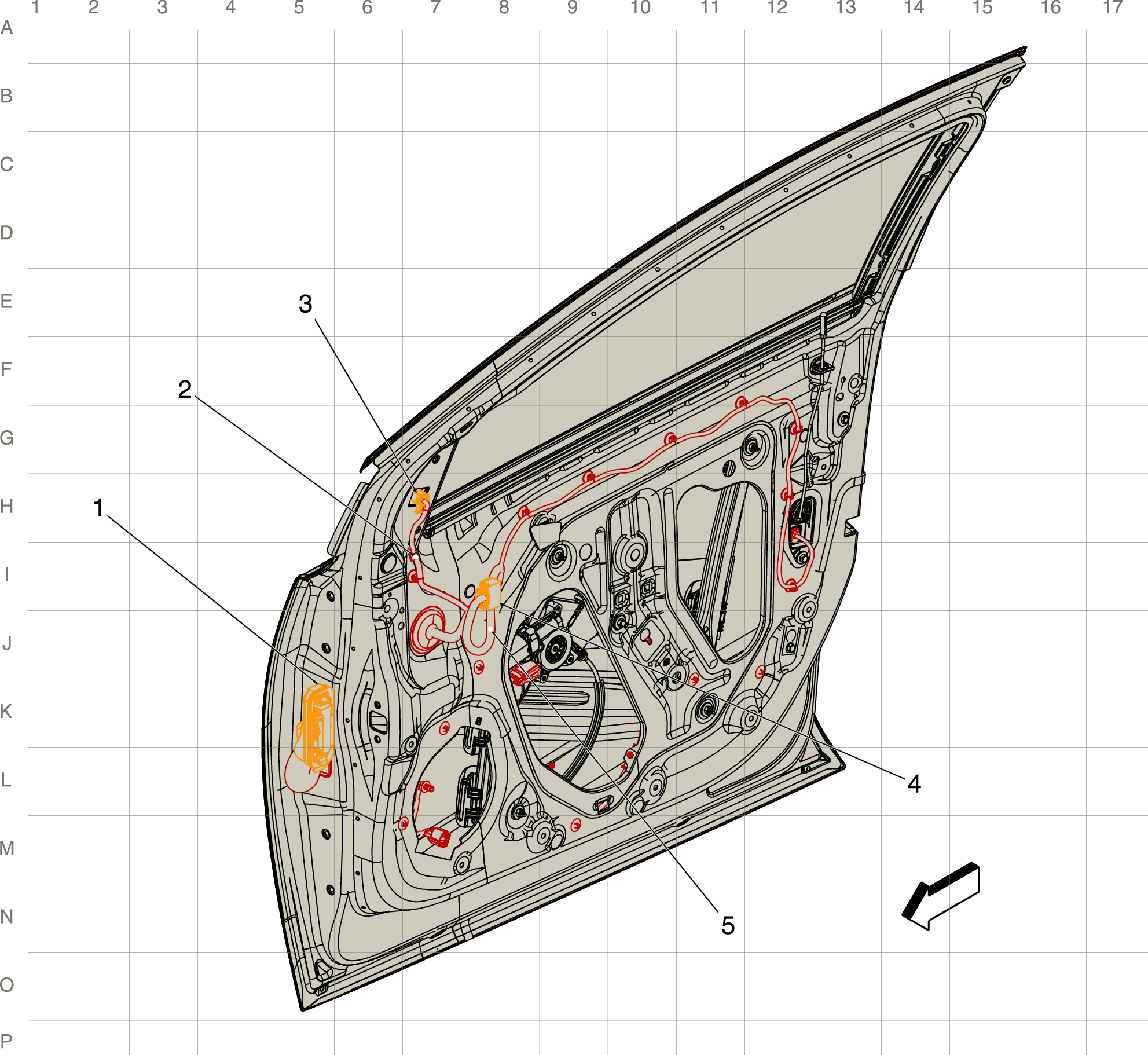

Fig 1: Right Front Door Harness Routing
GM4165855Courtesy of GENERAL MOTORS COMPANY
Items
1. X600 X600 Passenger Door Harness to Body Harness
2. J615
3. X610 X610 Passenger Door Harness to Outside Rear View Mirror Harness
4. X605 X605 Passenger Door Harness to Passenger Door Trim Harness
5. J611
