Left Side of Passenger Compartment Harness Routing

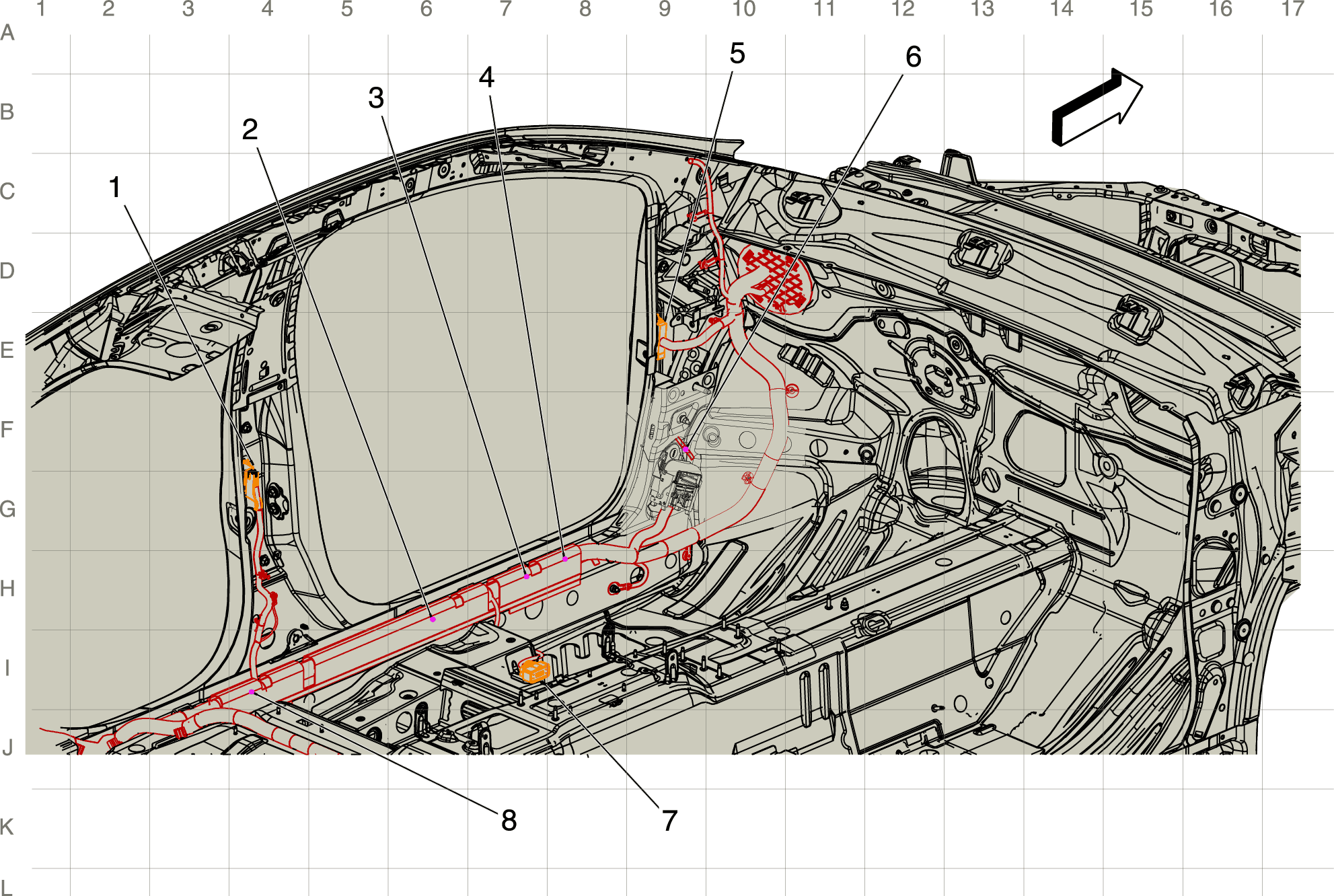

Fig 1: Left Side of Passenger Compartment Harness Routing
GM4165866Courtesy of GENERAL MOTORS COMPANY
Items
1. X700 X700 Left Rear Door Harness to Body Harness
2. J116
3. J234
4. J301
5. X500 X500 Driver Door Harness to Body Harness
6. J200
7. X310 X310 Body Harness to Driver Seat Harness
8. J328
