Left Rear Door Harness Routing
Left Rear Door Harness Routing

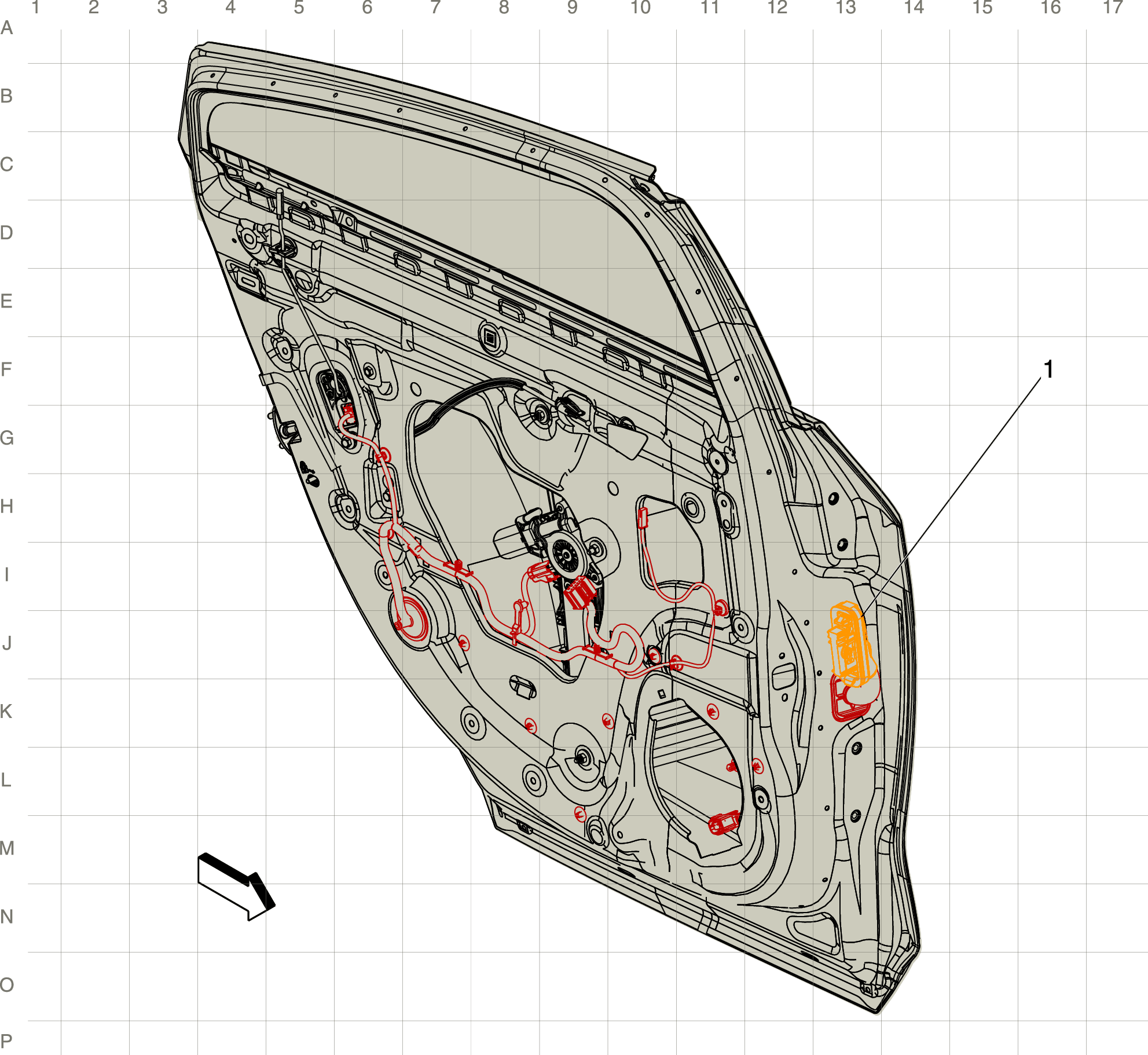

Fig 1: Left Rear Door Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1. X700
X700 Left Rear Door Harness to Body Harness
