Headliner Harness Routing
Headliner Harness Routing

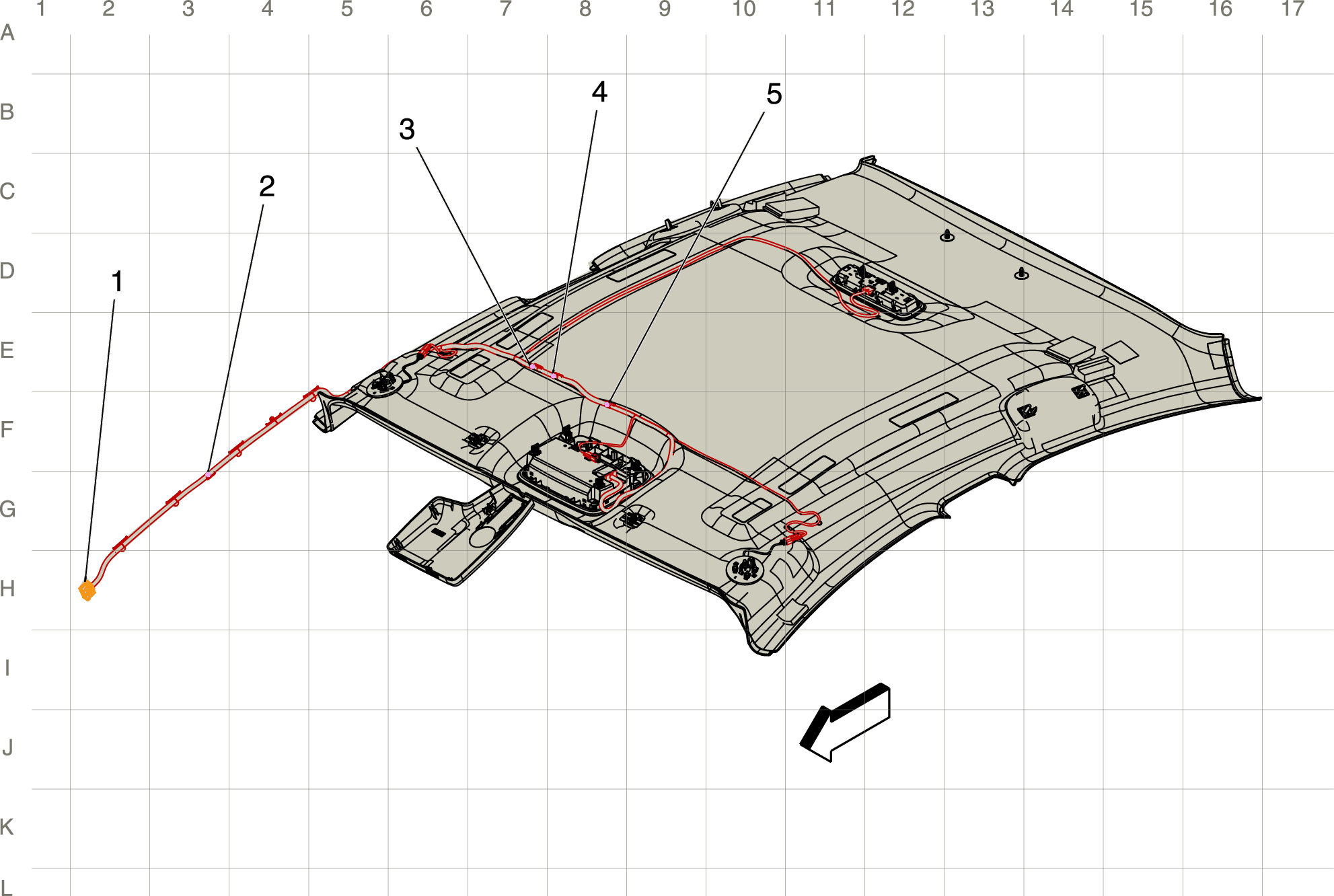

Fig 1: Headliner Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1. X325
X325 Headliner Harness to Instrument Panel Harness
2. J352
3. J354
4. J351
5. J353
