Wiring Schematics And Wiring Harness Routing Diagrams
>>
Schematic Wiring Diagrams
>>
Harness Routing Views
>>
12V Battery Negative Harness Routing
12V Battery Negative Harness Routing

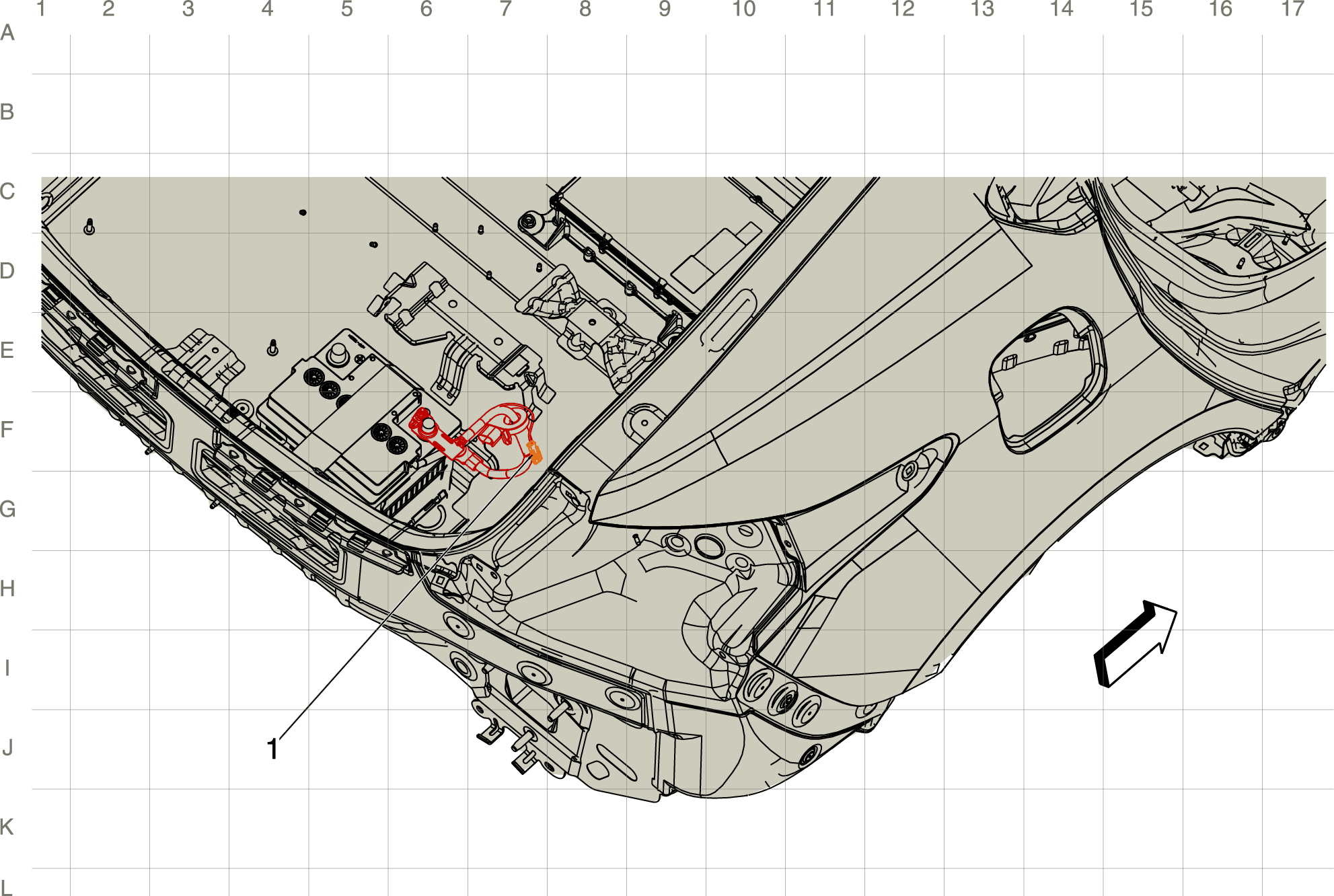

Fig 1: 12V Battery Negative Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1. X452
X452 Body Harness to Battery Cable Harness
