Underbody - Hybrid/EV Battery Pack Internals

Items
1. B32D Hybrid/EV Battery Temperature Sensor 4 B32D Hybrid/EV Battery Temperature Sensor 4
2. C5E Hybrid/EV Battery Module 5 C5E Hybrid/EV Battery Module 5
3. C5B Hybrid/EV Battery Module 2 C5B Hybrid/EV Battery Module 2
4. B32C Hybrid/EV Battery Temperature Sensor 3 B32C Hybrid/EV Battery Temperature Sensor 3
5. S15 Manual Service Disconnect
6. K16 Battery Energy Control Module K16 Battery Energy Control Module X1 K16 Battery Energy Control Module X2 K16 Battery Energy Control Module X3 K16 Battery Energy Control Module X4 K16 Battery Energy Control Module X5 K16 Battery Energy Control Module X6 K16 Battery Energy Control Module X7 K16 Battery Energy Control Module X8
7. B32E Hybrid/EV Battery Temperature Sensor 5 B32E Hybrid/EV Battery Temperature Sensor 5
8. C5F Hybrid/EV Battery Module 6 C5F Hybrid/EV Battery Module 6
9. B32F Hybrid/EV Battery Temperature Sensor 6 B32F Hybrid/EV Battery Temperature Sensor 6
10. C5C Hybrid/EV Battery Module 3 C5C Hybrid/EV Battery Module 3
11. B32B Hybrid/EV Battery Temperature Sensor 2 B32B Hybrid/EV Battery Temperature Sensor 2
12. C5A Hybrid/EV Battery Module 1 C5A Hybrid/EV Battery Module 1
13. B32A Hybrid/EV Battery Temperature Sensor 1 B32A Hybrid/EV Battery Temperature Sensor 1

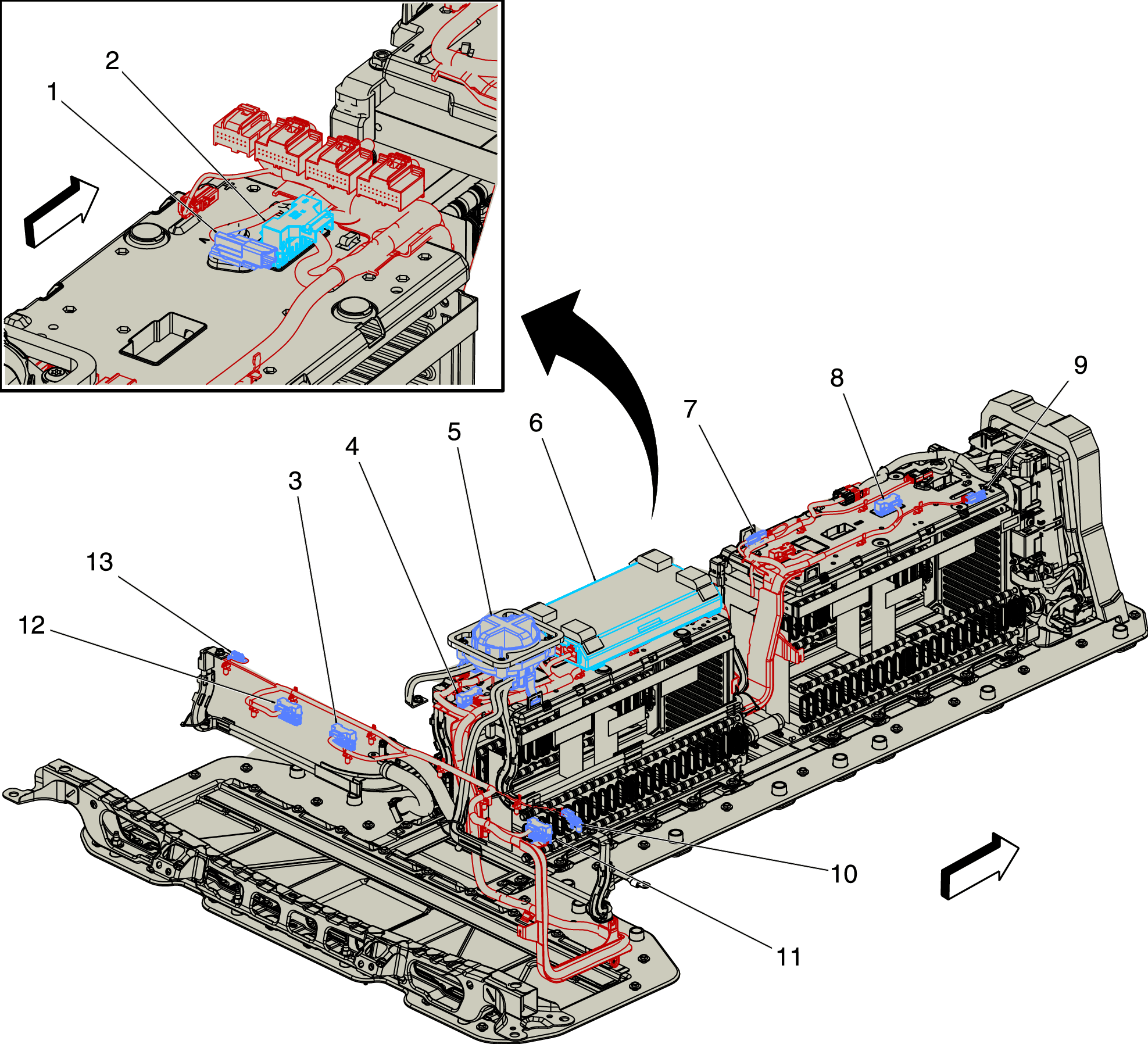

Fig 1: Underbody - Hybrid/EV Battery Pack Internals

Courtesy of GENERAL MOTORS COMPANY
