Power, Ground, Data Communication and Indicators

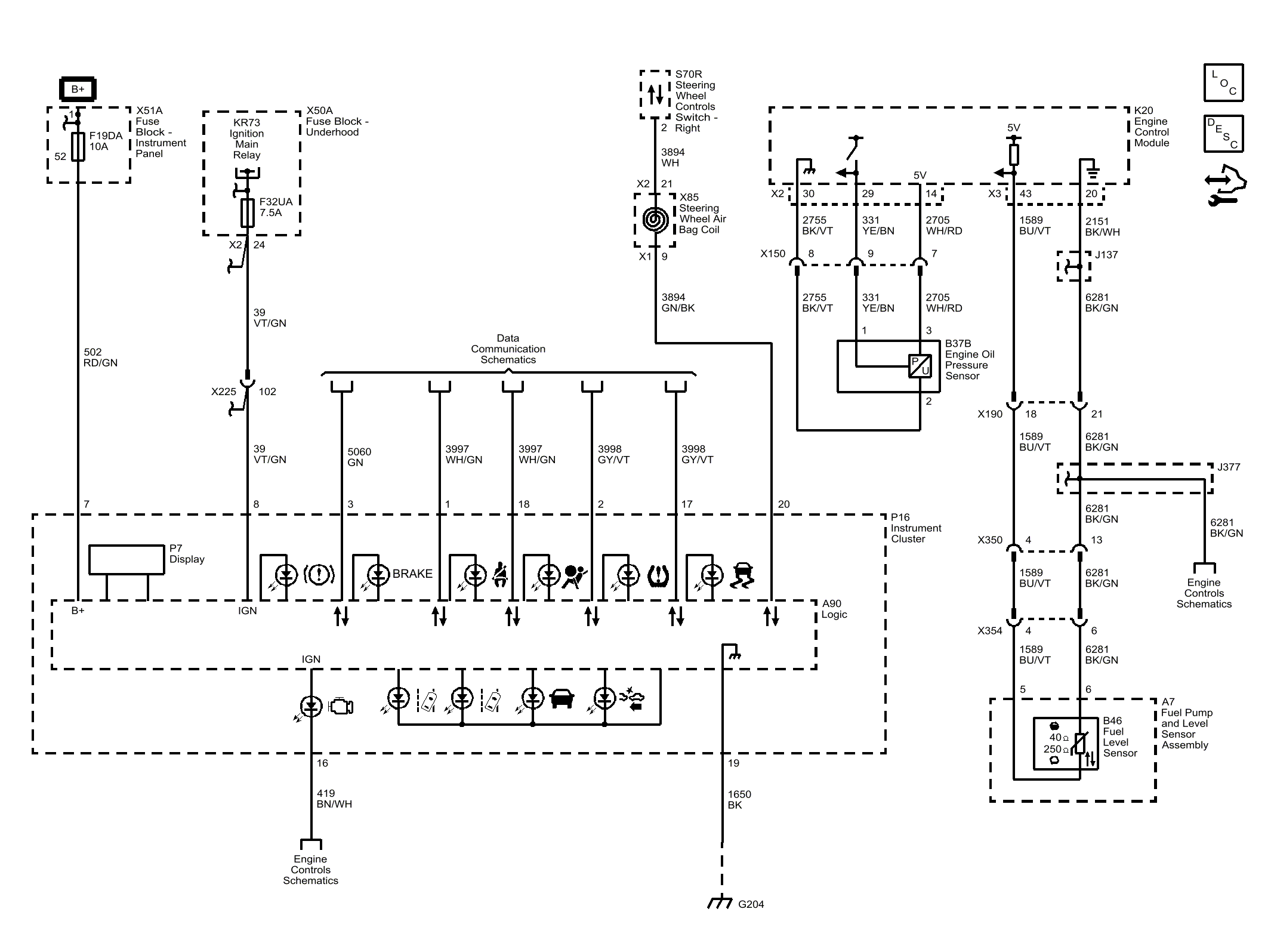

Fig 1: Power, Ground, Data Communication and Indicators

GM4290628

Courtesy of GENERAL MOTORS COMPANY
