Ambient Air Temperature Sensor Replacement

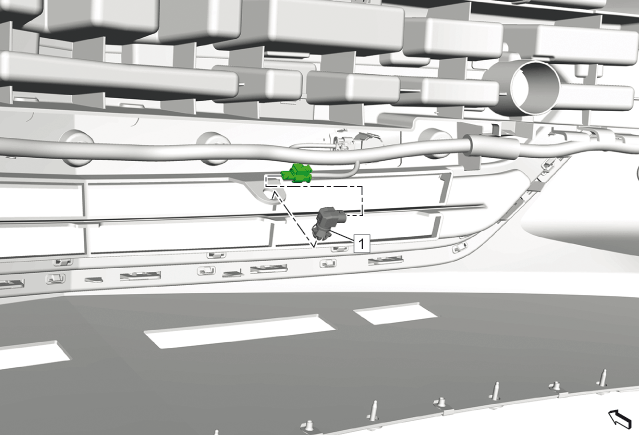

Fig 1: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Compartment Splash Shield. Refer to Front Compartment Splash Shield Replacement
1	Ambient Air Temperature Gauge Sensor Procedure Disconnect the electrical connectors. Unlock the retaining tabs.

Callout

Component Name

Preliminary Procedure
Remove Front Compartment Splash Shield. Refer to Front Compartment Splash Shield Replacement

Ambient Air Temperature Gauge Sensor

Procedure
