Left Rear of Passenger Compartment Harness Routing

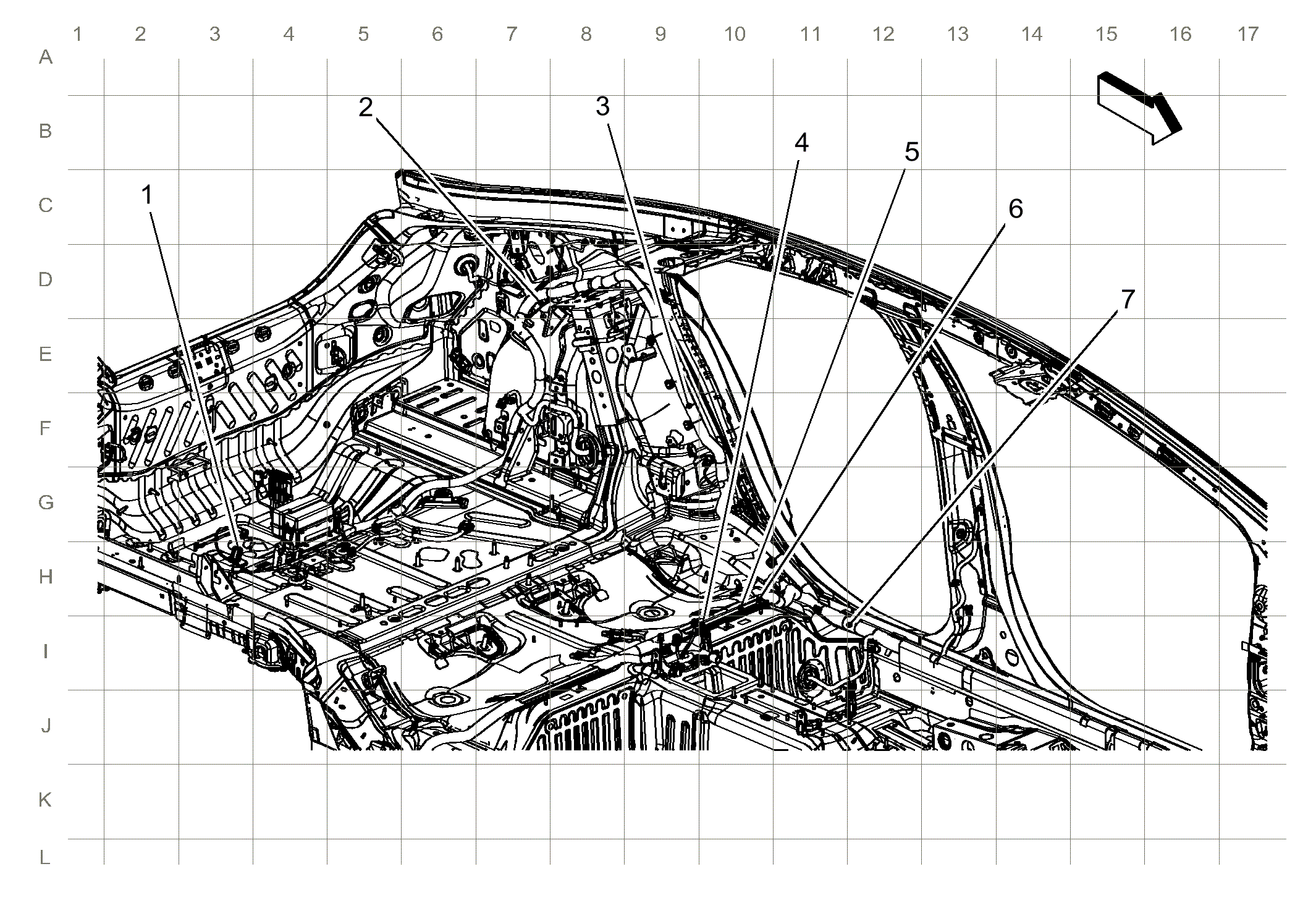

Fig 1: Left Rear of Passenger Compartment Harness Routing
GM4165871Courtesy of GENERAL MOTORS COMPANY
Items
1. X452 X452 Body Harness to Battery Cable Harness
2. J314
3. J407
4. J320
5. J402
6. J308
7. J333
