Power, Ground, Serial Data, and Gauges (Buick)

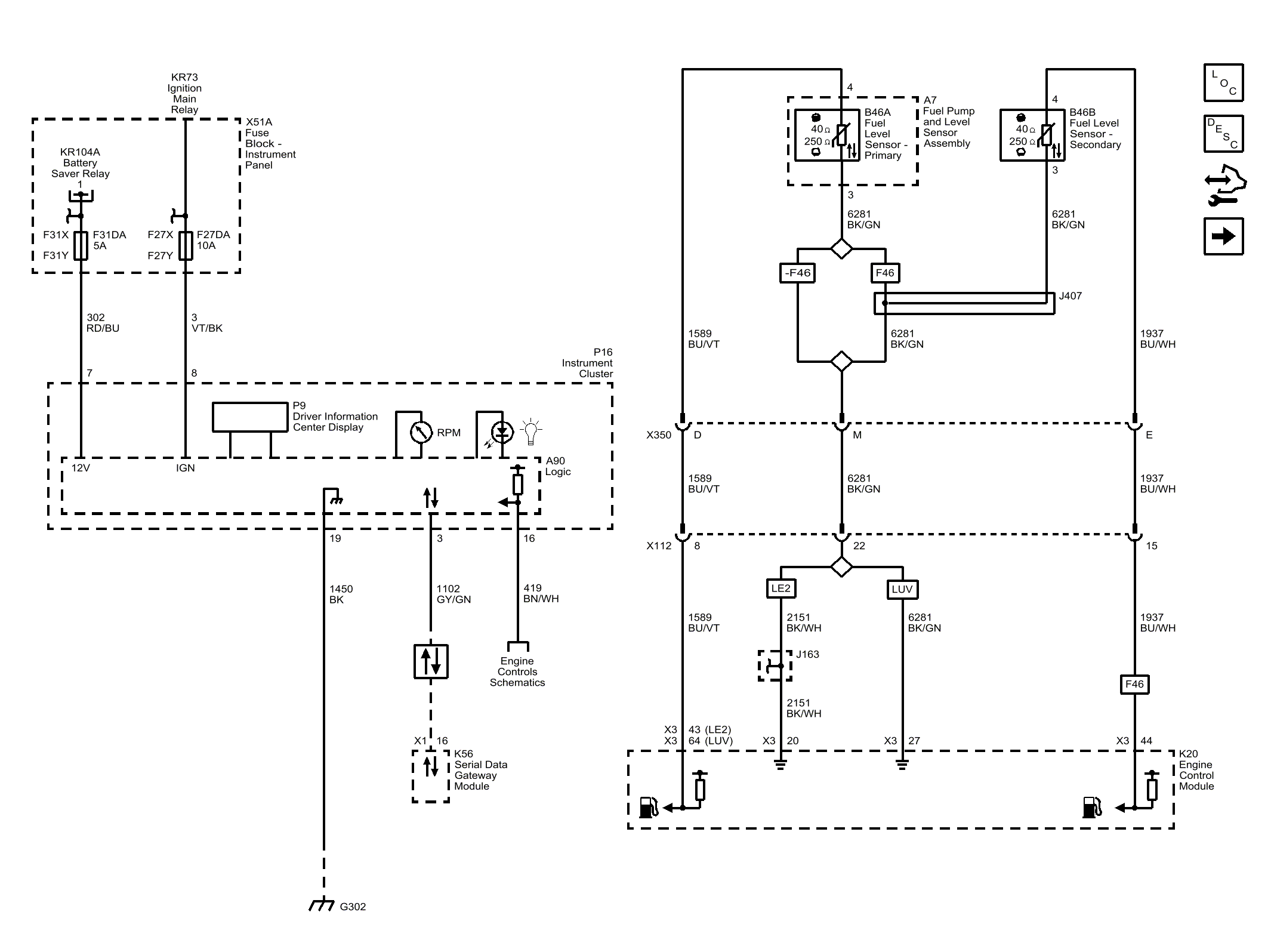

Fig 1: Power, Ground, Serial Data, and Gauges (Buick)

GM4376132

Courtesy of GENERAL MOTORS COMPANY
