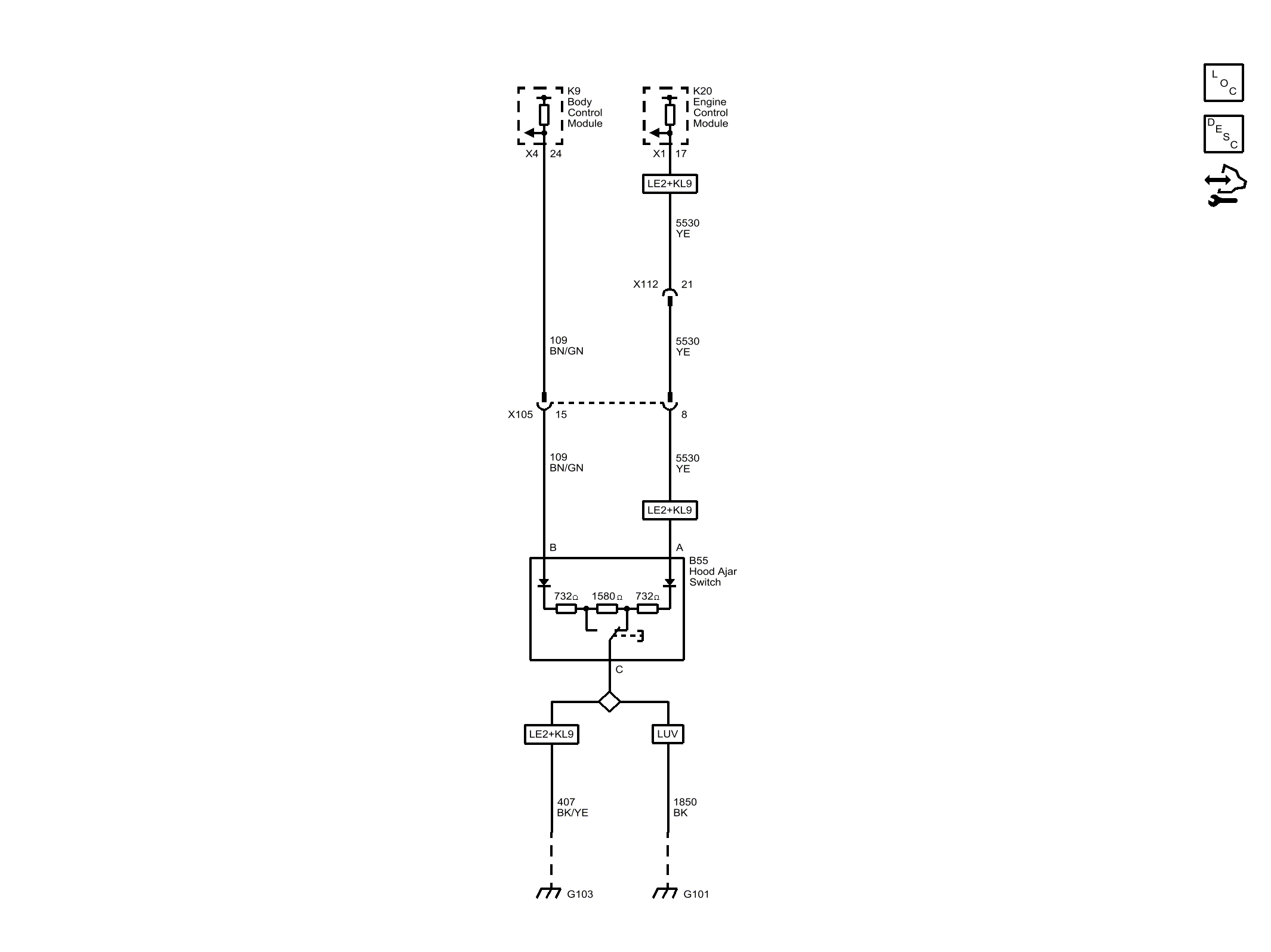

Home >> Chevrolet >> 2017 >> Trax LT, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bolted Exterior Body Panels And Closures >> Schematic Wiring Diagrams >> Hood Latch Wiring Schematics (Buick) >> Hood Ajar Switch (Buick)
