Rear Side Door Wiring Harness Replacement

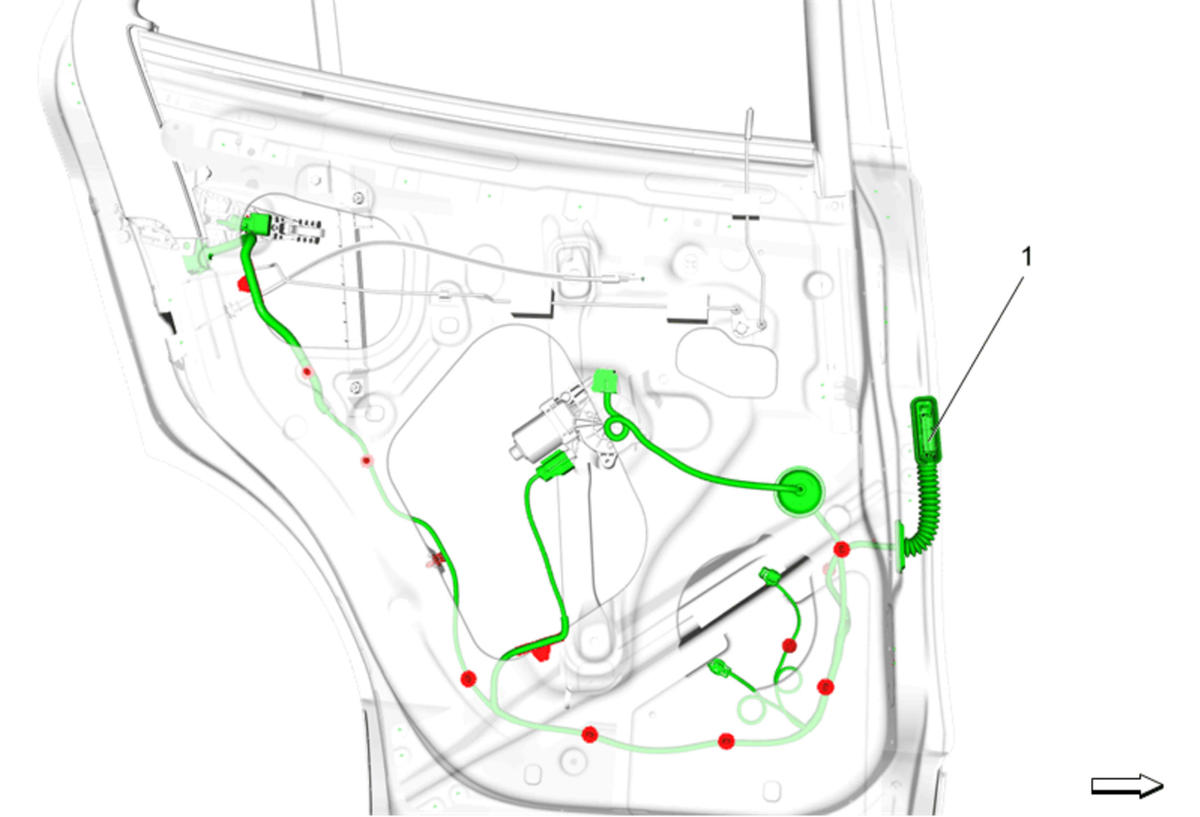

Fig 1: Rear Side Door Wiring Harness
GM4510505Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Radio Rear Side Door Speaker Replacement
  2. Remove the water deflector.
1 Rear Side Door Wiring Harness
Procedure
Disconnect all electrical connectors.
