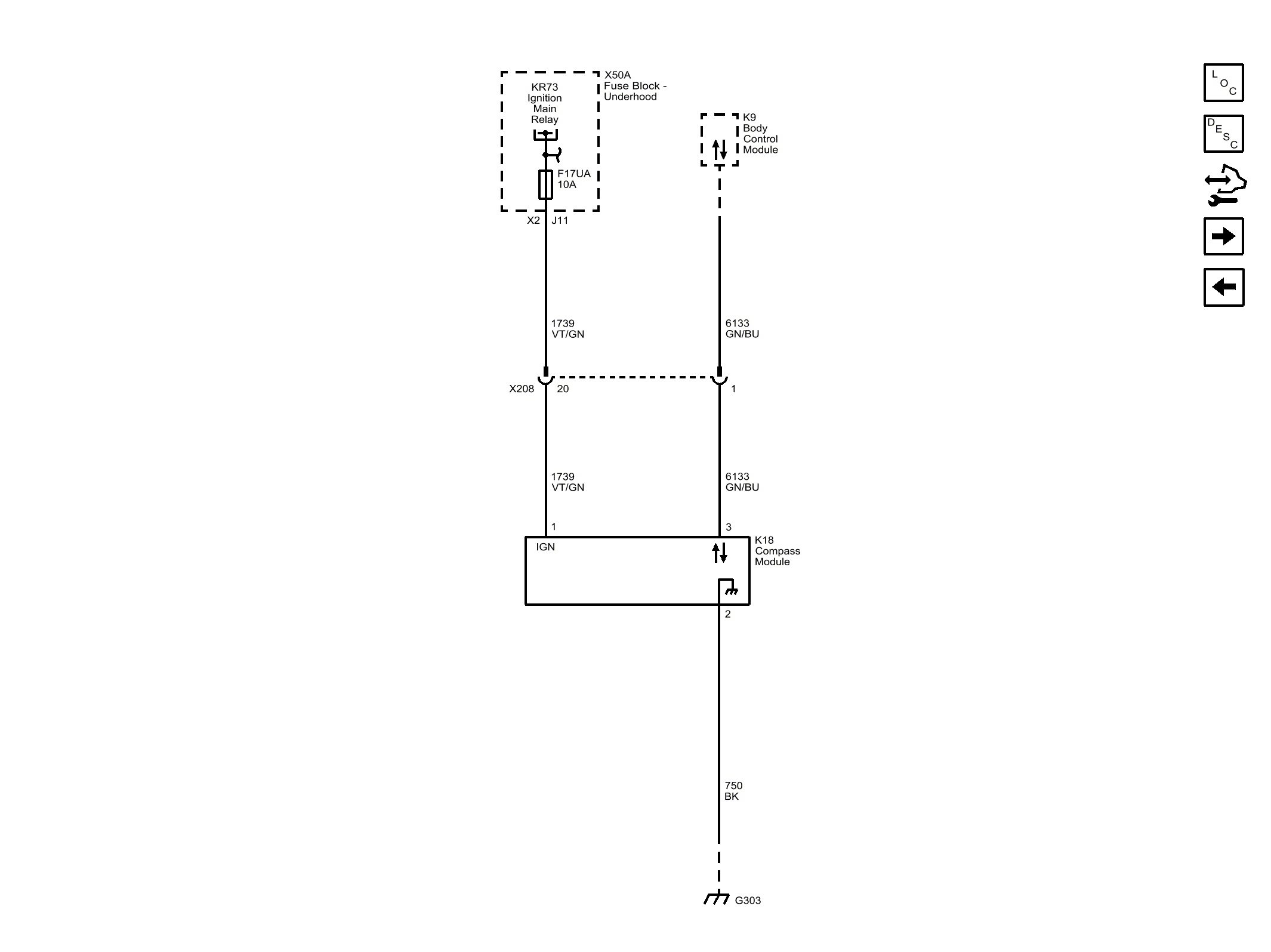

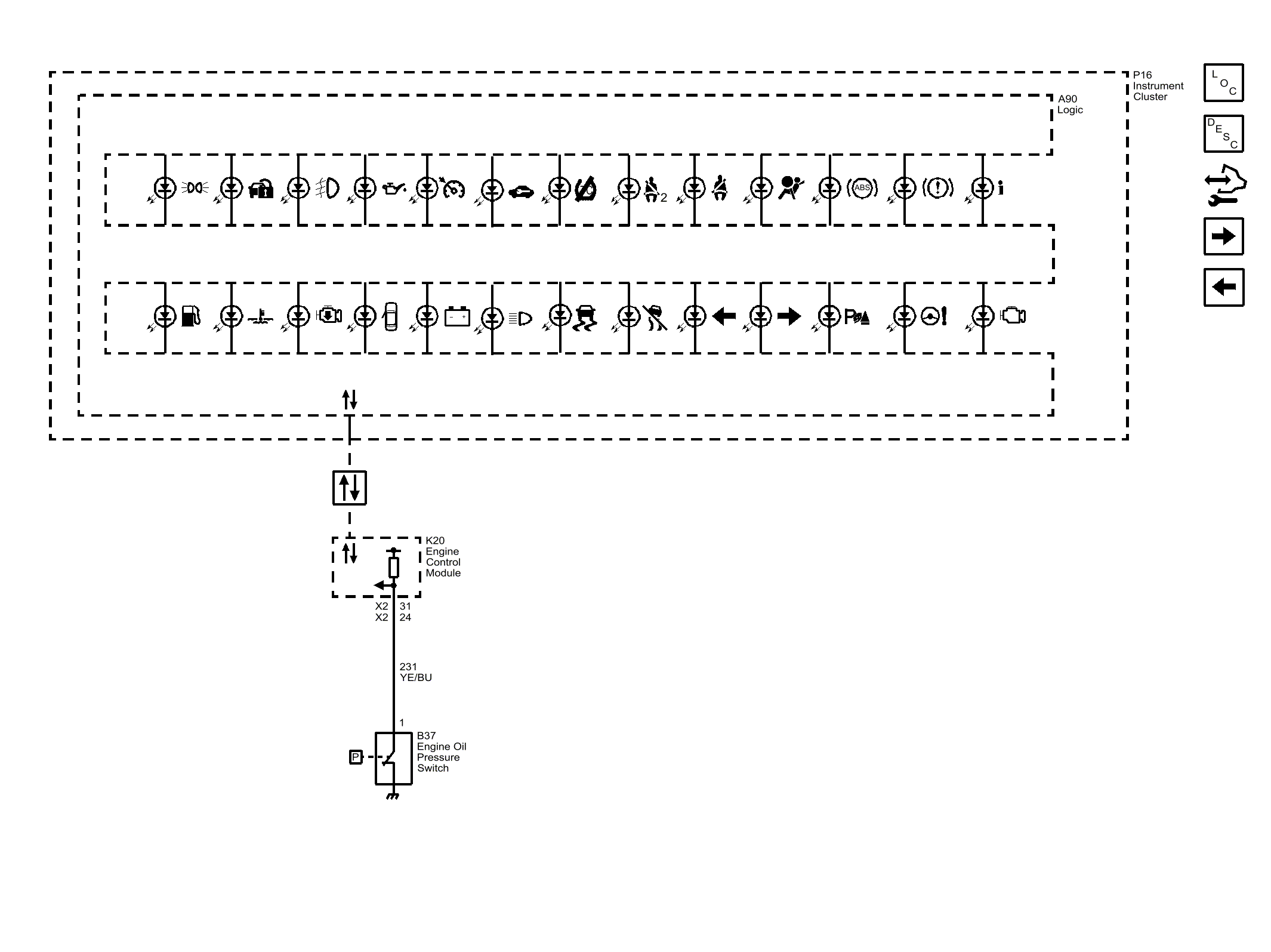

Home >> Chevrolet >> 2017 >> Trax LS, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics (Chevrolet) >> Indicators (Chevrolet)
