Front Seat Belt Anchor Plate Tensioner Replacement

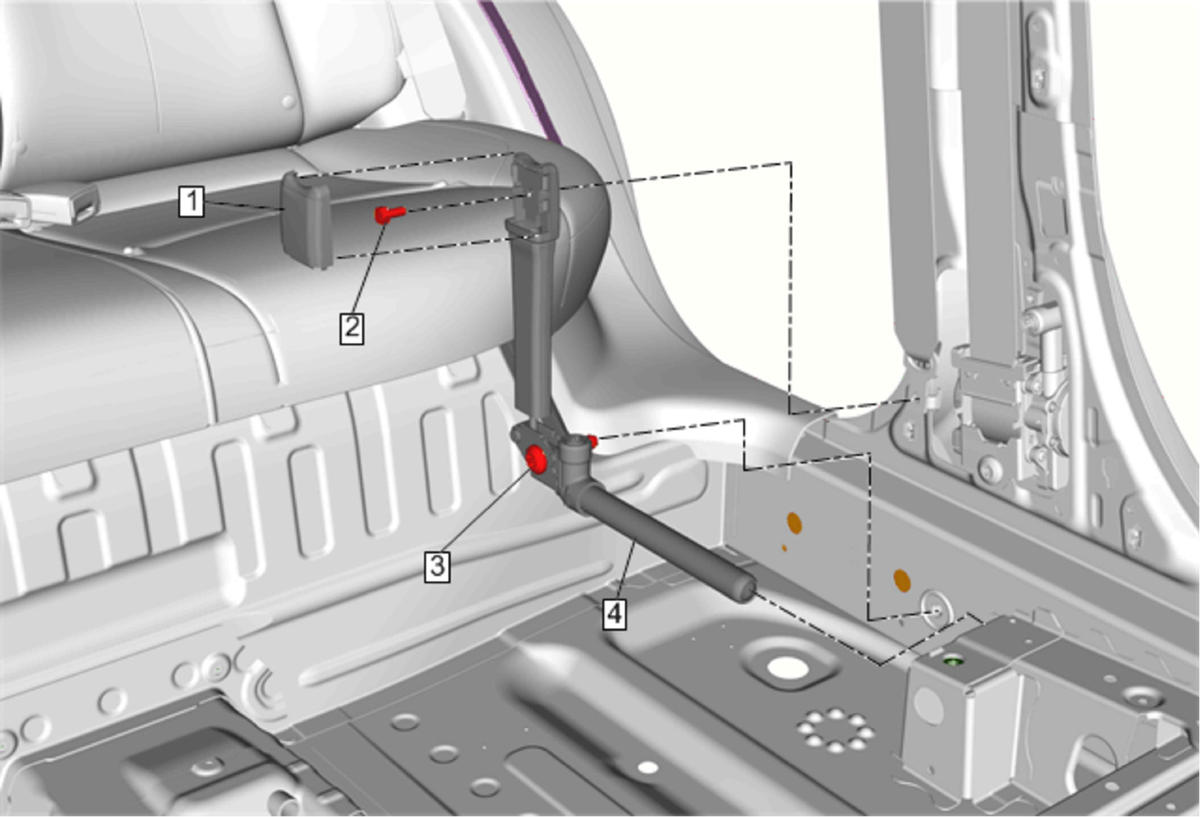

Fig 1: Front Seat Belt Anchor Plate Tensioner

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Seatbelt Pretensioner Handling Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
1	Front Seat Belt Anchor Plate Tensioner Cover
2	Front Seat Belt Tensioner Anchor Bolt CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
3	Front Seat Belt Anchor Plate Tensioner Bolt Procedure To access the tool hold the floor panel carpet that covers the tensioner. Tighten 40 N.m (30 lb in)
4	Front Seat Belt Anchor Plate Tensioner
