Power Seats Easy Entry Description and Operation (Front Seat): Notes
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
The power seat and easy entry seat system consists of the following components:
- Easy entry switch
- Seat adjuster switch
- Folding top control module
- Easy entry seat motor
- Easy entry seat position sensor
- Seat front vertical motor
- Seat rear vertical motor
- Seat recline motor
NOTE:

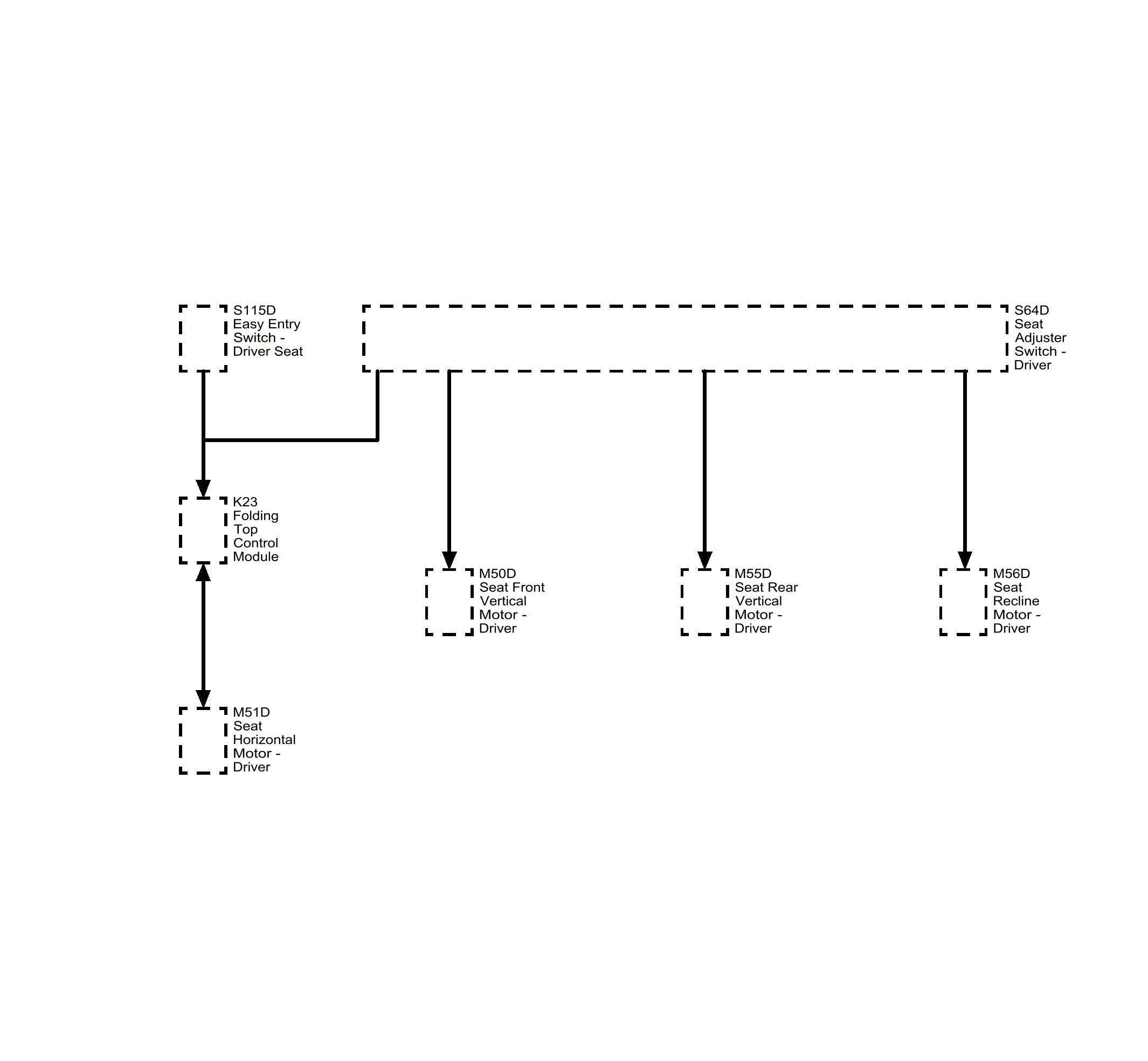

The passenger seat block diagram is identical to the driver seat.
| Callout | Component Name |
|---|---|
| S64D | S64D Seat Adjuster Switch - Driver |
| S115D | S115D Easy Entry Switch - Driver Seat |
| K23 | K23 Folding Top Control Module |
| M50D | M50D Seat Front Vertical Motor - Driver |
| M55D | M55D Seat Rear Vertical Motor - Driver |
| M56D | M56D Seat Recline Motor - Driver |
| M51D | M51D Seat Horizontal Motor - Driver |
