Installation Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

Rear Axle Bracket(3) - Install

NOTE:

Install, but do NOT tighten

Install NEW bolt and nut.(1 – 2)
WARNING:
Refer to Torque-to-Yield Fastener Warning .

CAUTION:
Refer to Fastener Caution .

Install and tighten the NEW bolt.(1)[8x].
1. First Pass: 90 N.m (66 lb ft).
2. Final Pass: 45 degrees, using the EN-45059 meter.
WARNING:
Refer to Torque-to-Yield Fastener Warning .

Bolt(2) - Tighten
1. First Pass: 70 N.m (52 lb ft).
2. Final Pass: 120 degrees, using the EN-45059 meter.
Remove the hydraulic lift table and the CH-6002-A tool.

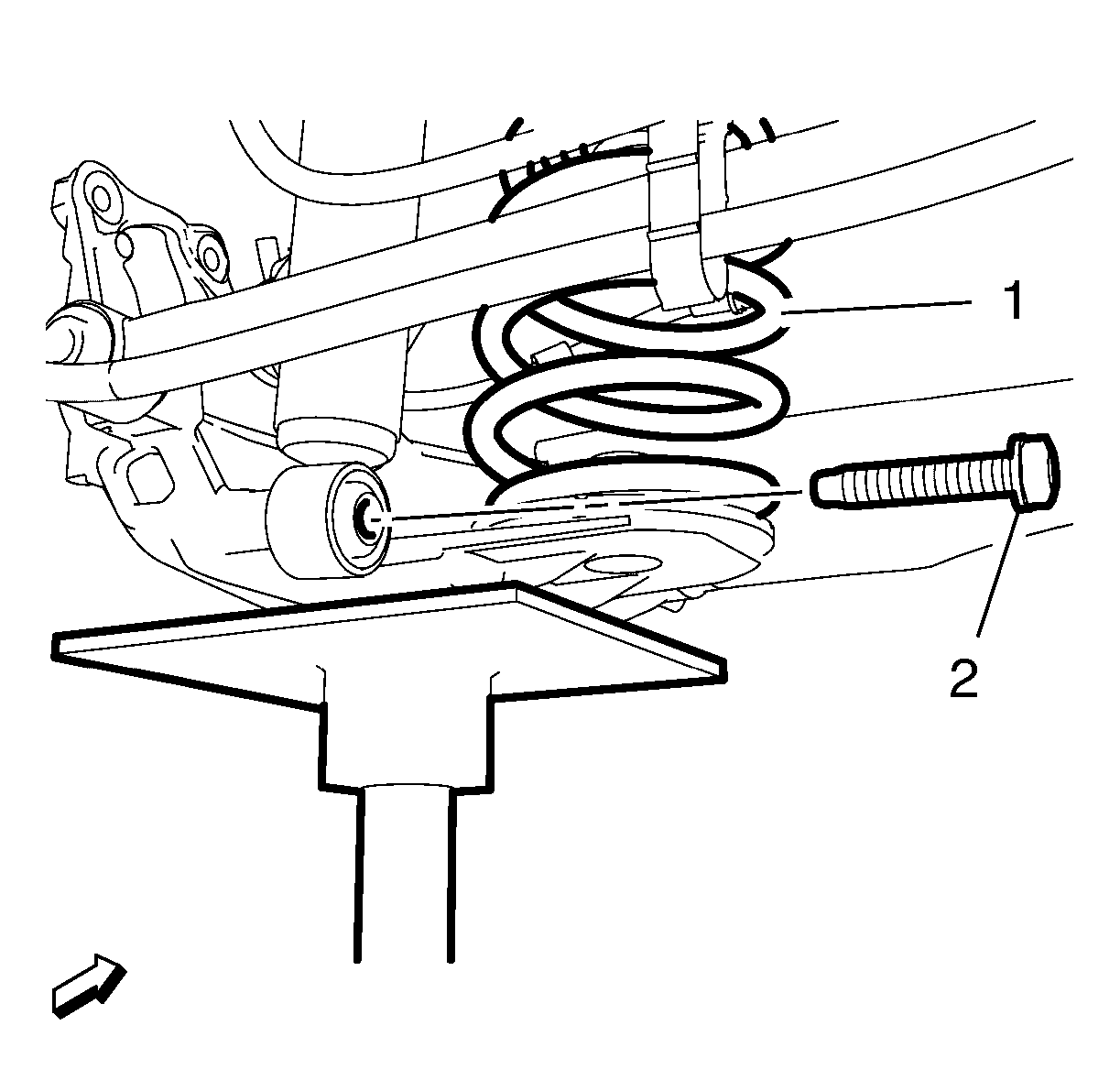

Rear Spring(1) - Install[2x]
Support the rear axle with a tall jack stand near the shock absorber.

NOTE:

Install, but do NOT tighten

Bolt(1) - Loosely install[2x]
NOTE:
Install, but do NOT tighten

Bolt(1) - Loosely install[2x]
If equipped, connect the headlamp leveling rear suspension height sensor connector. Refer to Headlamp Leveling Rear Suspension Height Sensor Replacement .
{ If equipped }Bolt(1) - Install and tighten[4x] 10 N.m (89 lb in).
Bolt(1) - Install and tighten[2x] 8 N.m (71 lb in).
Install the rear V-rod underbody brace. Refer to Underbody Brace Replacement - Rear V-Rod .
Install the rear tire and wheel assemblies. Tire and Wheel Removal and Installation .
Lower the vehicle.
WARNING:
Refer to Torque-to-Yield Fastener Warning .

NOTE:
Tighten the bolts with vehicle standing on the ground.

Bolt(2) - Tighten[2x]
1. First Pass: 150 N.m (111 lb ft).
2. Final Pass: 65 degrees, using the EN-45059 meter.
NOTE:
Tighten the bolts with vehicle standing on the ground.

Bolt(2) - Tighten[2x] 160 N.m (118 lb ft).
