Steering Gear Bushing Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

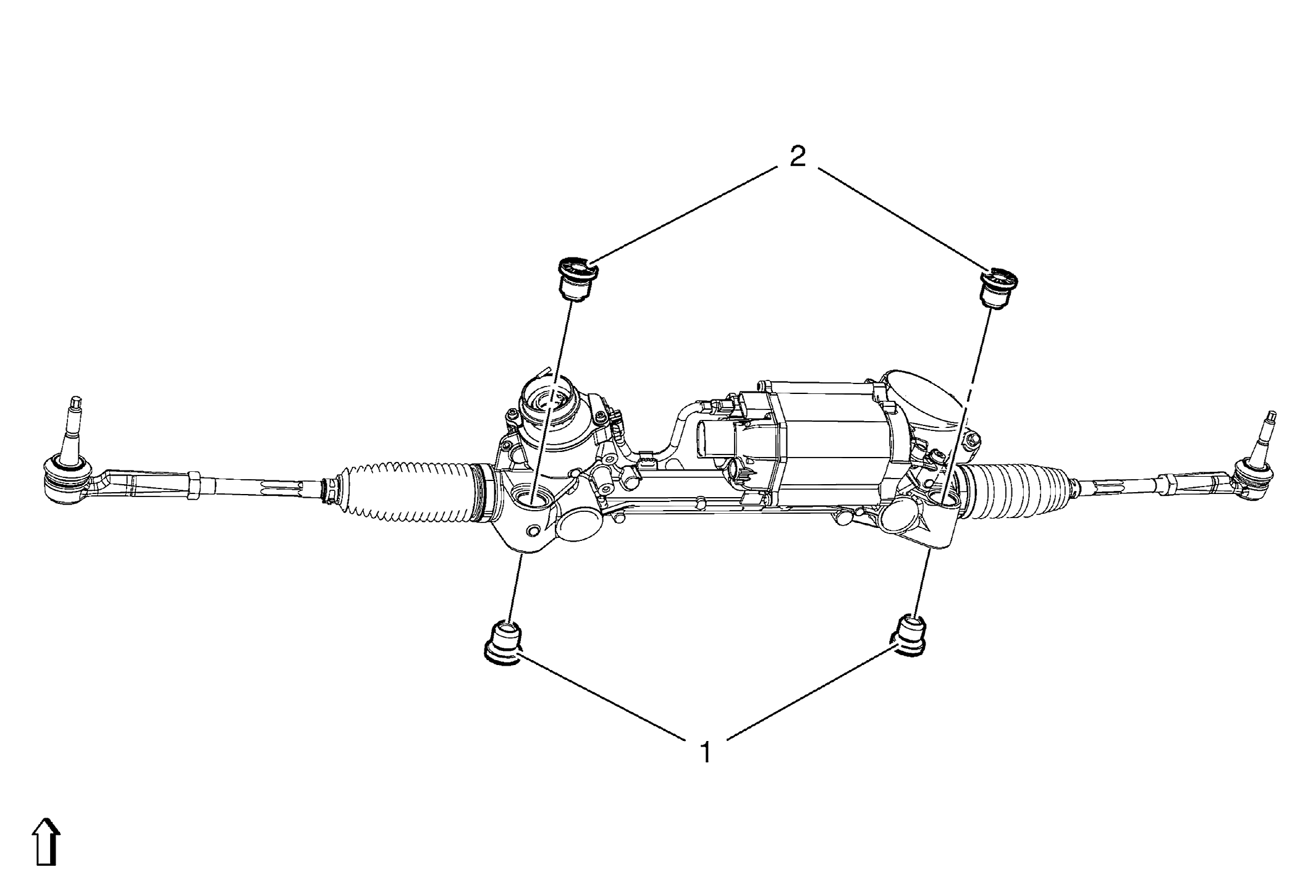

GM2191947
Callout Component Name
Preliminary Procedures
Remove electronic power steering gear. Refer to Steering Gear Replacement .
1 Lower Steering Gear Bushing

Procedure

  1. Have an assistant hold the steering gear in place.
  2. Remove and DISCARD bushing using suitable pliers.
  3. Lubricate new bushing with a mild soap to assure easy installation.
2 Upper Steering Gear Bushing

Procedure

  1. Remove and DISCARD bushing using a suitable punch and a soft rubber mallet.
  2. Remove old bushing from backside.
  3. Lubricate new bushing with a mild soap to assure easy installation.
