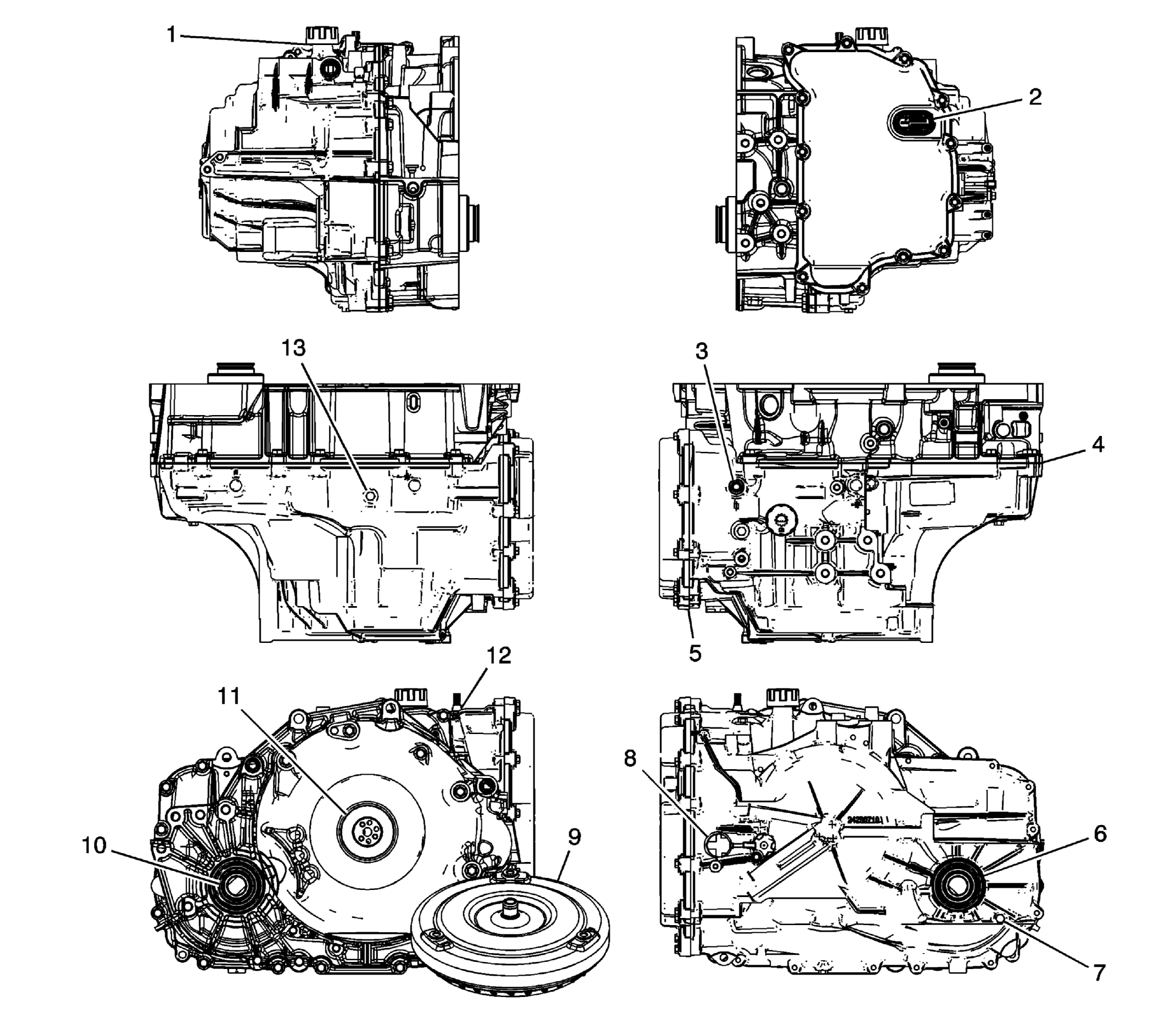

Leak Inspection Points
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Fill Cap Seal |
| 2 | Control Valve Body Cover Hole Seal |
| 3 | Line Pressure Tap Plug |
| 4 | Converter Housing to Case Joint |
| 5 | Control Valve Body Cover Gasket |
| 6 | Drive Shaft Oil Seal Assembly |
| 7 | Oil Level Plug |
| 8 | A/Trans Input Speed Sensor Assembly O-Ring Seal |
| 9 | Torque Converter Assembly |
| 10 | Front Wheel Drive Shaft Oil Seal Assembly |
| 11 | Torque Converter Fluid Seal Assembly |
| 12 | Manual Shift Shaft Seal |
| 13 | Drain Plug |
