Rear Compartment Lid Emblem/Nameplate Replacement (Lettering)

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
1	Rear Compartment Lid Emblem/Nameplate CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength. Use a heat gun or equivalent to remove the old emblem. Clean all adhesive from the rear compartment panel with a 50 - 50 alcohol solution or equivalent adhesive cleaner and wipe the surface dry with a clean lint-free towel prior to installing the new emblem. When removing the protective liners from the adhesive tape, be careful not to touch the tape with the hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion. Close the rear compartment lid prior to adhesion. Using the palm of the hand, wet out the emblem to the rear compartment lid to ensure full adhesion of the emblem is made. Dimension data left lettering A - 36 mm (1.42 in) B - 322 mm (12.68 in) Dimension data right lettering C - 36 mm (1.42 in) D - 465 mm (18.31 in)

Callout

Component Name

Rear Compartment Lid Emblem/Nameplate

CAUTION:

Refer to Exterior Trim Emblem Removal Caution .

Procedure

The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
Use a heat gun or equivalent to remove the old emblem. Clean all adhesive from the rear compartment panel with a 50 - 50 alcohol solution or equivalent adhesive cleaner and wipe the surface dry with a clean lint-free towel prior to installing the new emblem.
When removing the protective liners from the adhesive tape, be careful not to touch the tape with the hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion.
Close the rear compartment lid prior to adhesion.
Using the palm of the hand, wet out the emblem to the rear compartment lid to ensure full adhesion of the emblem is made.

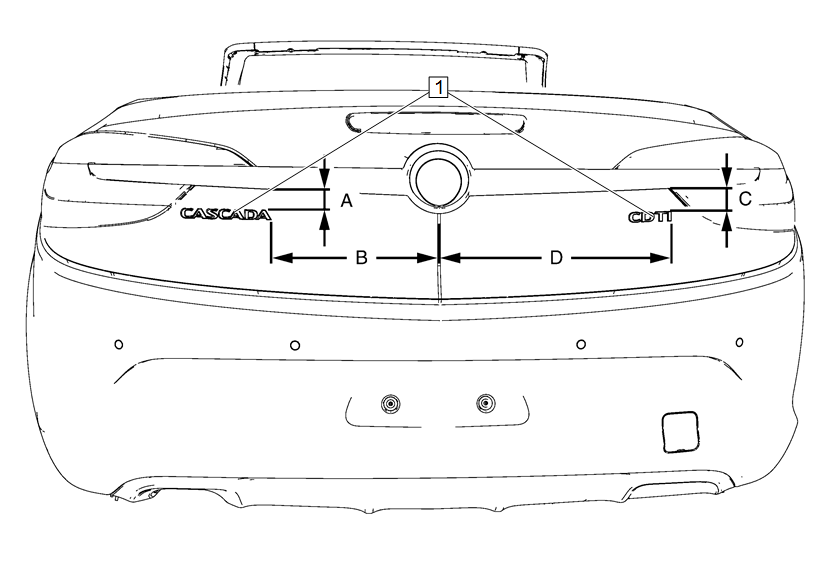

Dimension data left lettering

A - 36 mm (1.42 in)
B - 322 mm (12.68 in)

Dimension data right lettering

C - 36 mm (1.42 in)
D - 465 mm (18.31 in)
