Removal Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

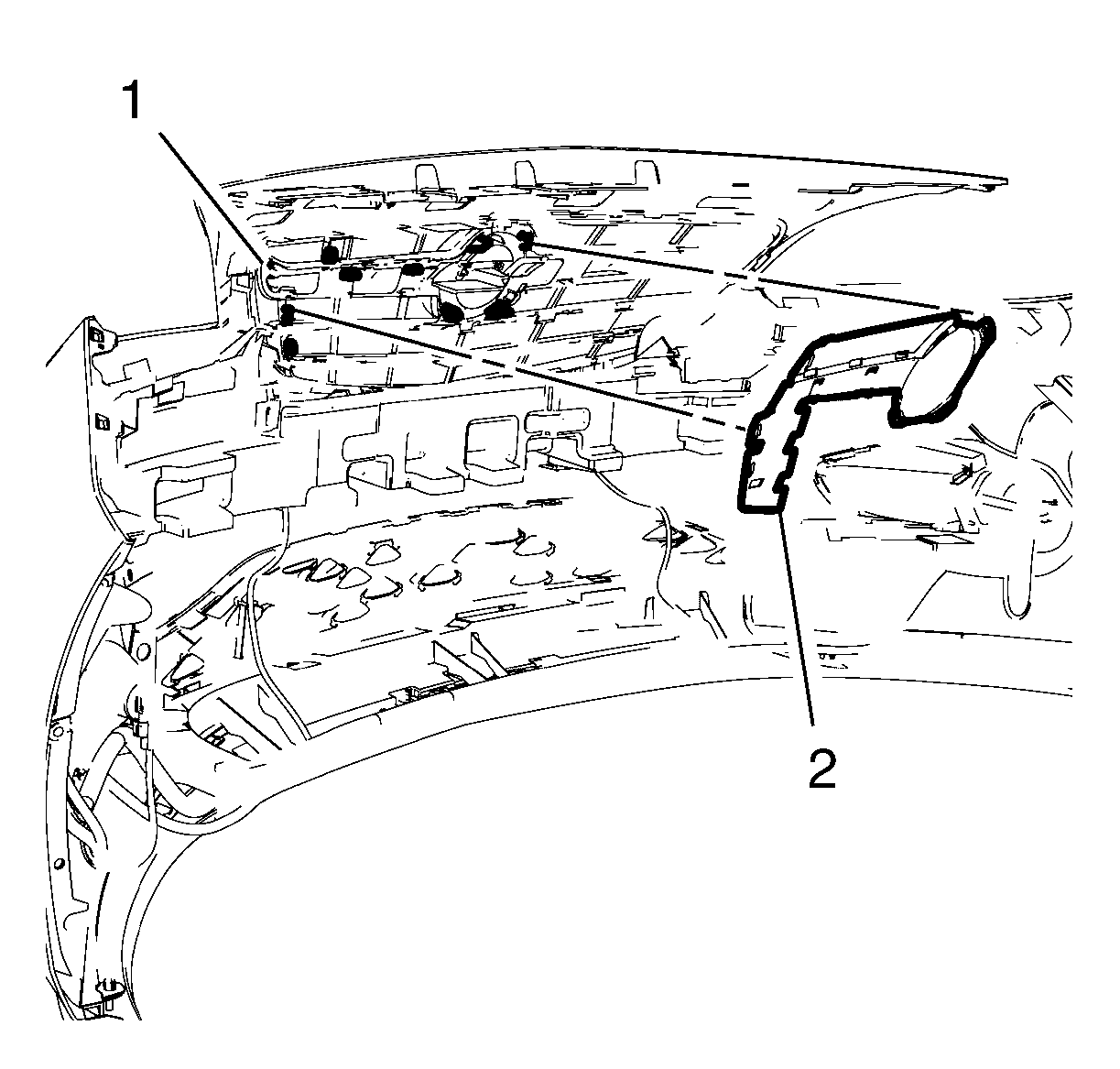

  2. GM2969097

    Use a flat bladed plastic trim tool to aid in removal of the radiator grille opening cover (2) from the front bumper fascia (1). Unlock 12 retaining clamps and snap-in noses.

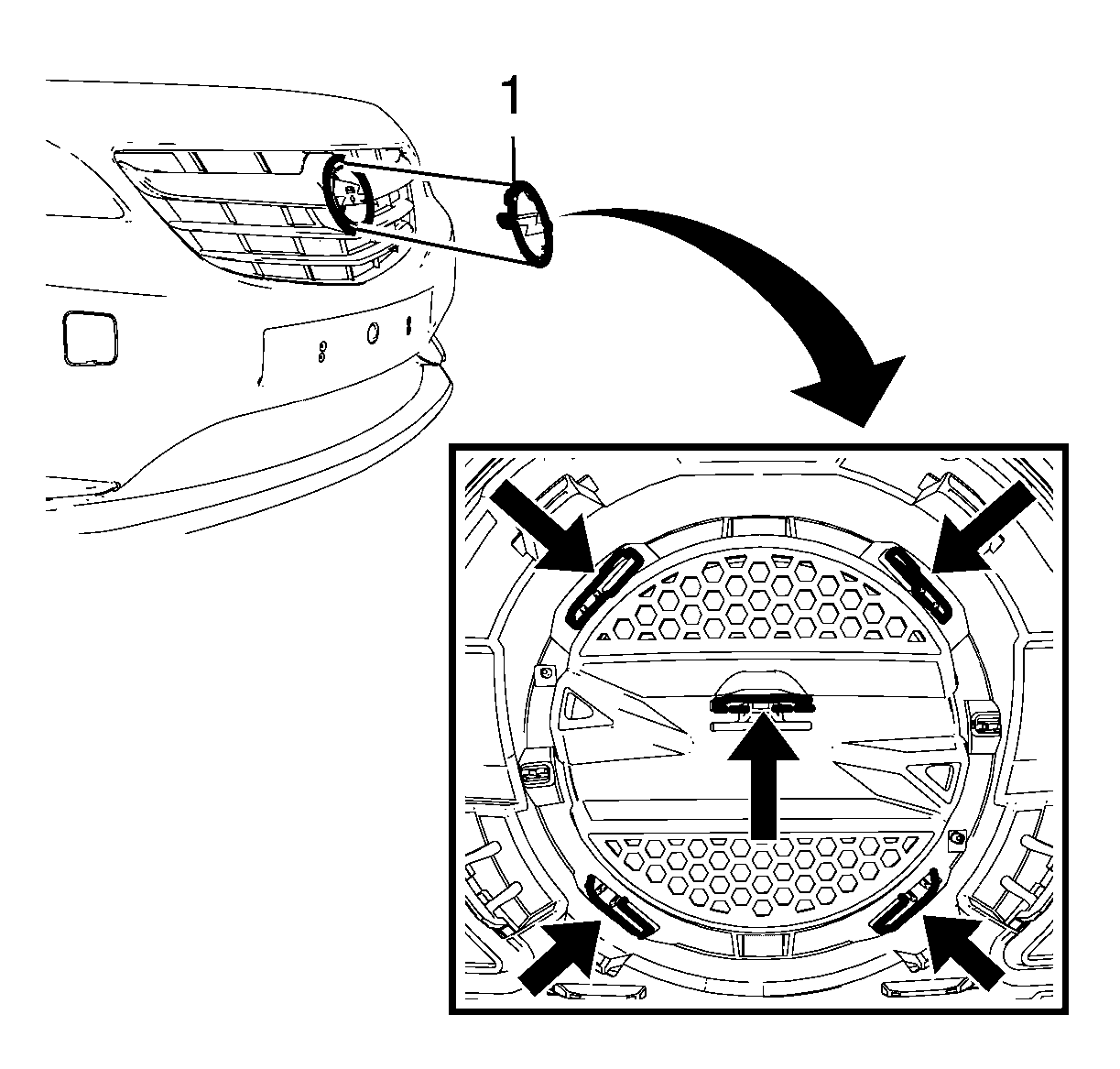

  3. GM2969096

    Release the 5 radiator grille emblem retainers (arrows) to remove the radiator grill emblem (1).
