Front Lower Grille Replacement
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

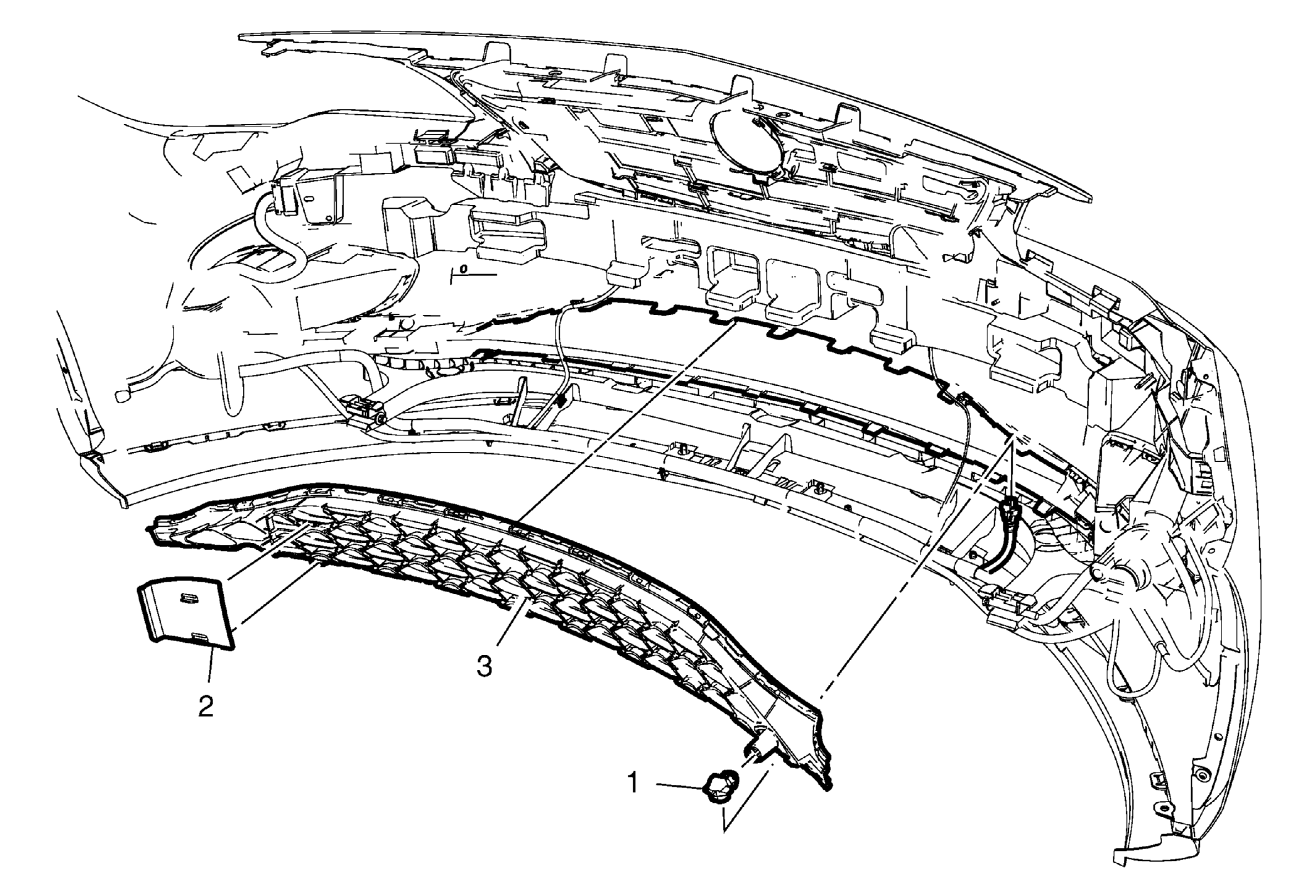

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Ambient Air Temperature Gauge Sensor Procedure Disconnect the electrical connector. |
| 2 | Front Bumper Fascia Opening Lower Cover Procedure Unlock 2 retaining clamps and snap-in noses. |
| 3 | Radiator Lower Grille Procedure
|
