Front License Plate Bracket Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

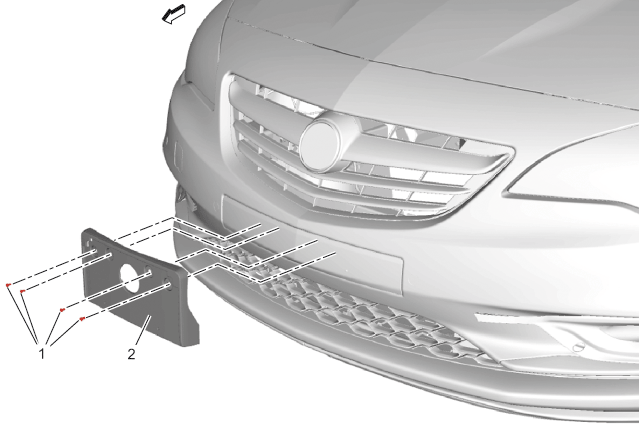

GM4248467
Callout Component Name
1 Front License Plate Bracket Fastener[4x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front License Plate Bracket
NOTE:

Observe the correct orientation before installing the bracket.
