Front Bumper Fascia Insert Cover Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

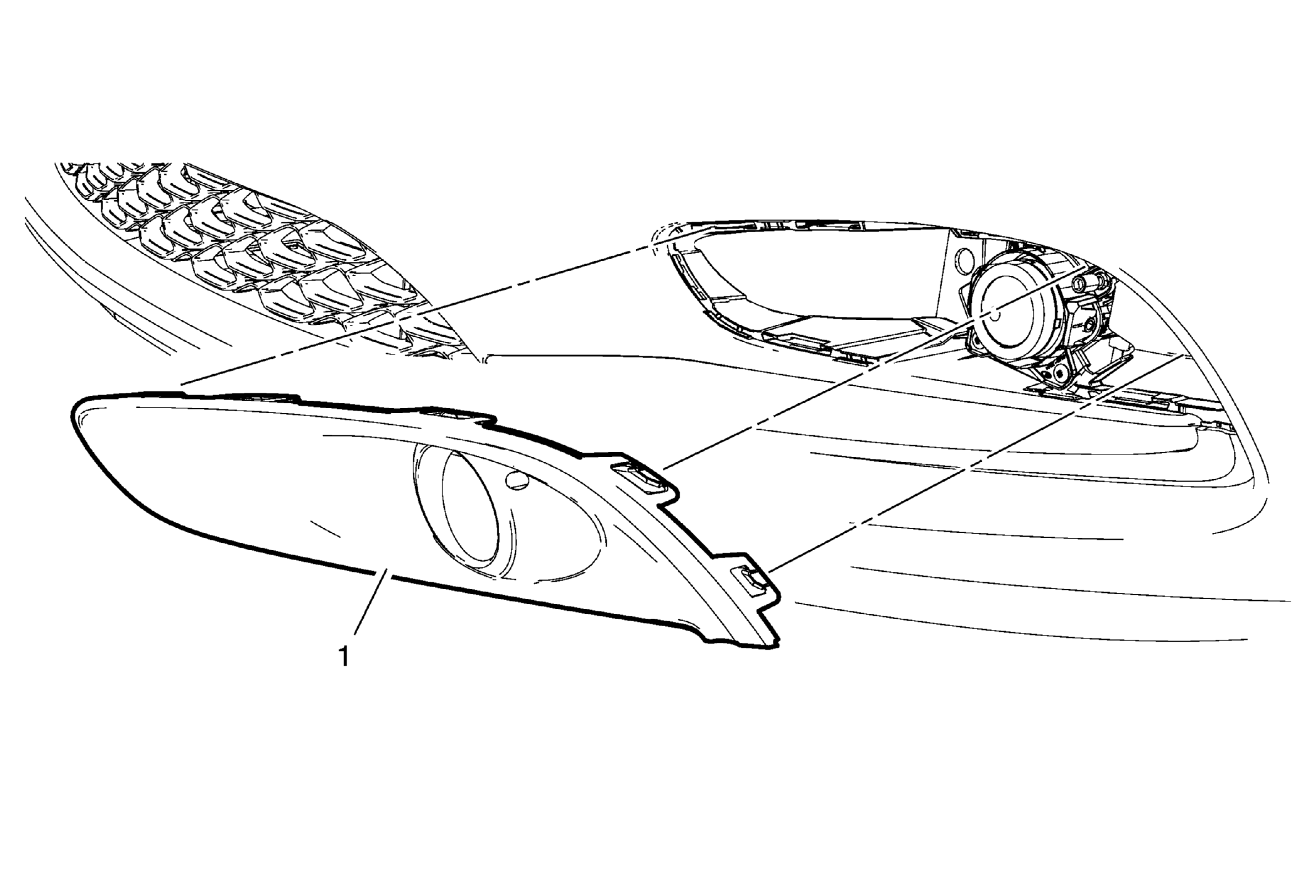

GM3011718
Callout Component Name
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1 Front Bumper Fascia Insert Cover
Procedure
Use a flat bladed plastic trim tool to aid in removal of the front bumper fascia insert cover.
