Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation (6T40/45)
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

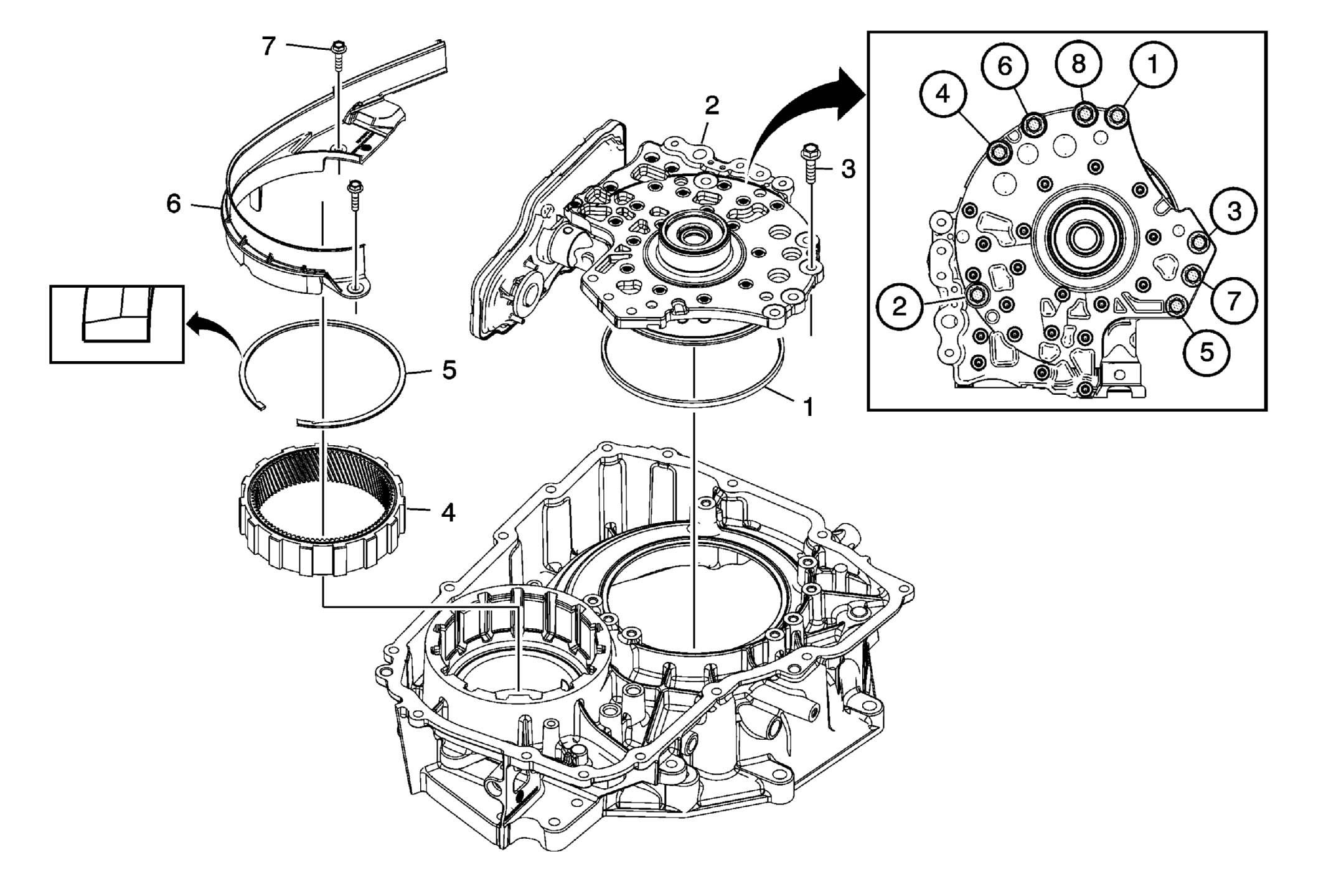

| Callout | Component Name |
|---|---|
| 1 | Torque Converter and Differential Housing Seal |
| 2 | Fluid Pump Assembly |
| 3 | Fluid Pump Bolts M8 x 33 (Qty: 8)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) then rotate the bolt an additional 45 degrees Special Tool EN-45059 Angle Meter or equivalent For equivalent regional tools, refer to Special Tools . |
| 4 | Front Differential Ring Gear |
| 5 | Front Differential Ring Gear Retainer
NOTE:
Install the retainer with the taper facing away from the ring gear. |
| 6 | Front Differential Carrier Baffle |
| 7 | Front Differential Carrier Baffle Bolts M6 x 25 (Qty: 2) Tighten 12 N.m (106.21 lb in) |
