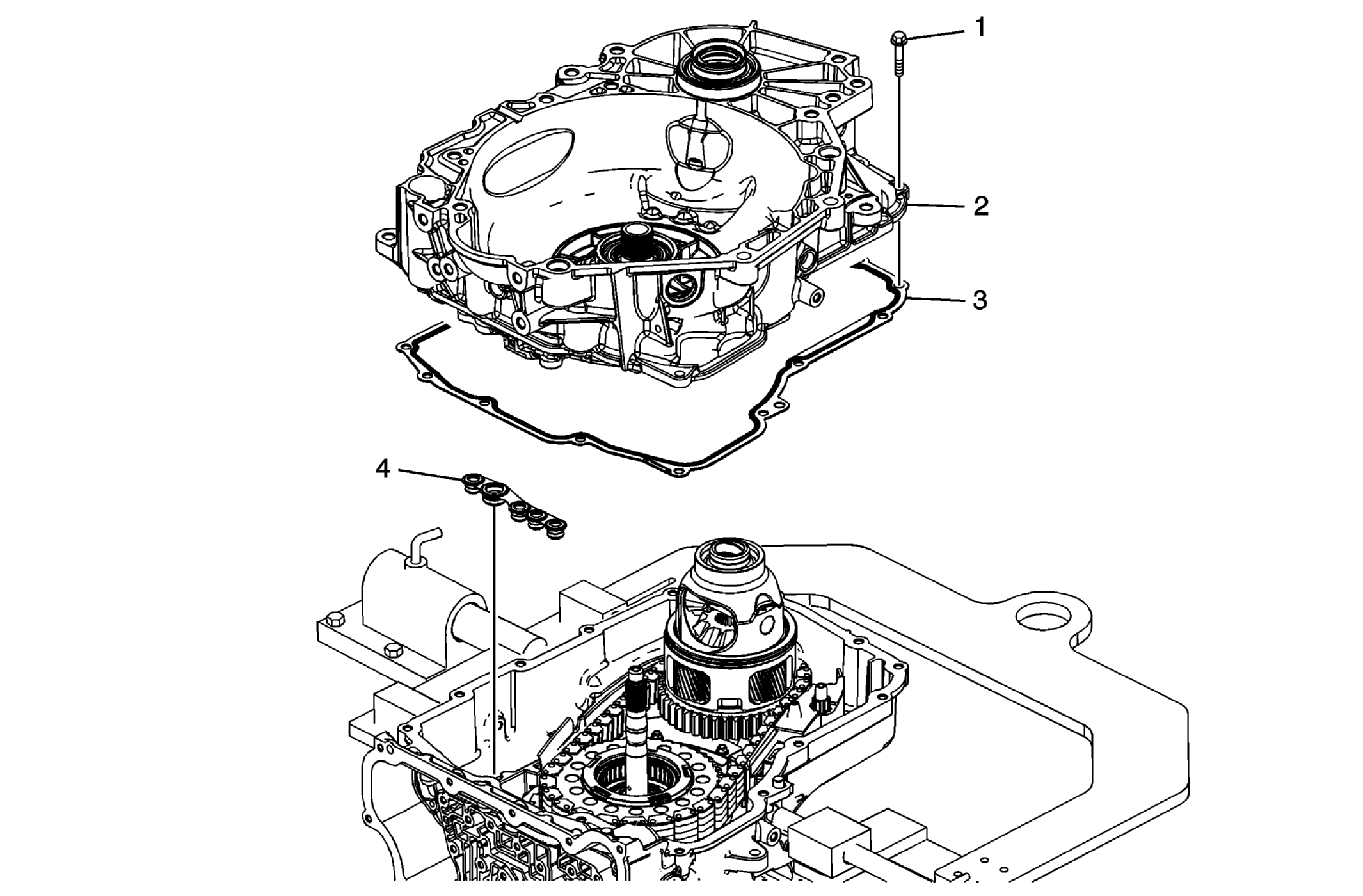

Torque Converter Housing with Fluid Pump Assembly Removal (Non Hybrid)
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
| Callout |
Component Name |
| 1 |
Torque Converter and Differential Housing Bolts M8 x 30 (Qty: 15) |
| 2 |
Torque Converter with Fluid Pump Housing Assembly |
| 3 |
Torque Converter Housing Gasket
NOTE:
Discard the seal. It is not reusable.
|
| 4 |
Fluid Pump Seal Assembly
NOTE:
Discard the seal. It is not reusable.
|
