Rear Bumper Impact Bar Replacement
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

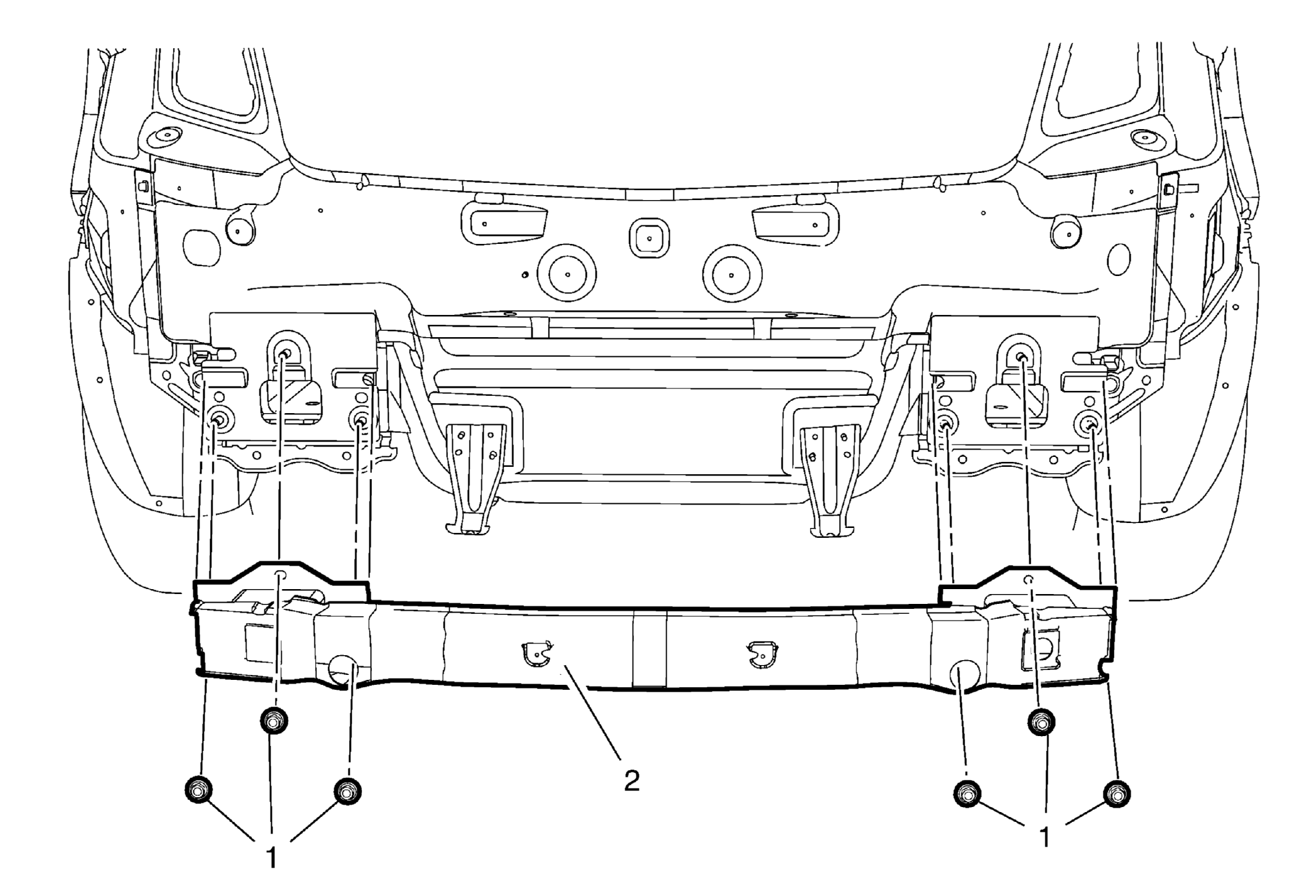

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Rear Bumper Impact Bar Nuts (Qty: 6)
CAUTION:
Refer to Fastener Caution . Tighten 37.5 N.m (28 lb ft) |
| 2 | Rear Bumper Impact Bar. |
