Rear Compartment Lid Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

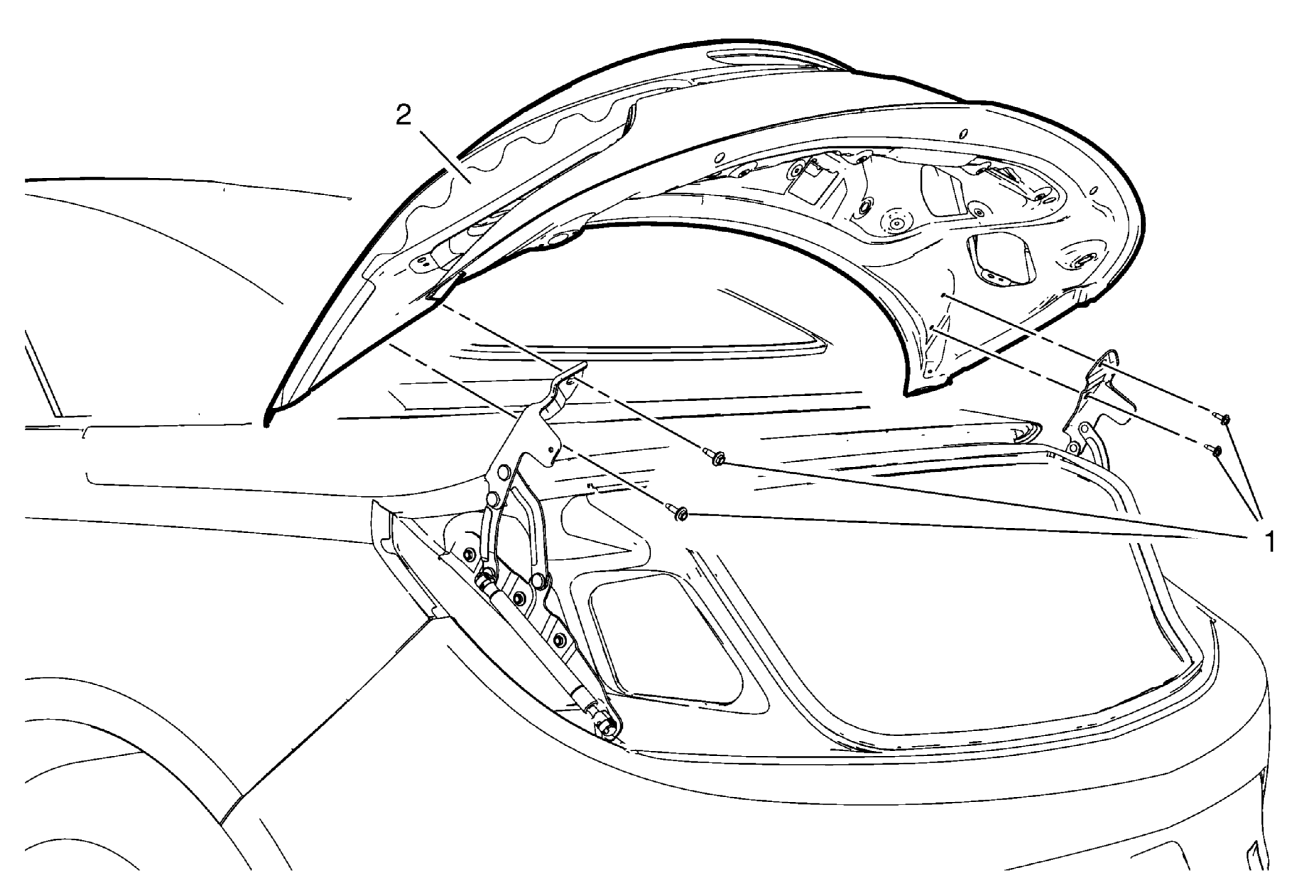

Callout	Component Name
1	Rear Compartment Lid Hinge Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Remove all of the internal components. Support the rear compartment lid before removing the hinge bolts. Tighten 9 N.m (80 lb in)
2	Rear Compartment Lid Procedure With the aid of an assistant, remove the rear compartment lid. Close the NEW lid manually in order to check the clearance between rear compartment lid and folding top stowage compartment lid. Adjust the rear compartment lid as needed. Refer to Clearance and Flushness Specifications .

Callout

Component Name

Rear Compartment Lid Hinge Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Procedure

Remove all of the internal components.
Support the rear compartment lid before removing the hinge bolts.

Tighten
9 N.m (80 lb in)

Rear Compartment Lid

Procedure

With the aid of an assistant, remove the rear compartment lid.
Close the NEW lid manually in order to check the clearance between rear compartment lid and folding top stowage compartment lid.
Adjust the rear compartment lid as needed. Refer to Clearance and Flushness Specifications .
