Adjustment Axes

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
GM3352017
Callout Component Name
X Horizontal Adjustment (driving direction)
Y Vertical Adjustment (depth direction)
Z Horizontal and Vertical Adjustment (elevating direction)
  1. In case that the side windows of one complete side, or all side windows do not match, please check first folding top position. Refer to Folding Top Adjustment (With BO-51074-NA Remove/Install and Adjustment Set)Folding Top Adjustment (Without BO-51074-NA Remove/Install and Adjustment Set) .
  2. Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .

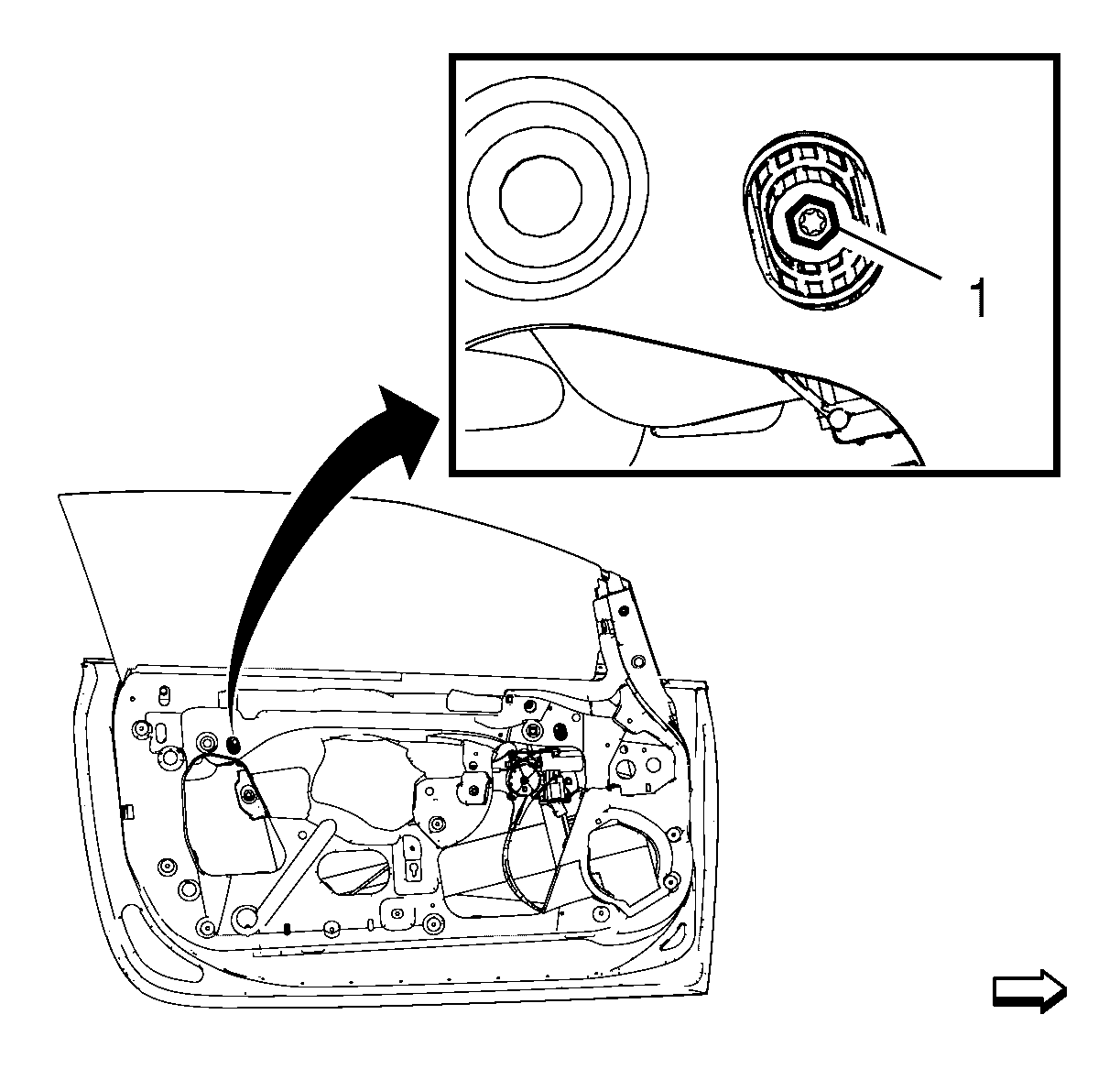

  3. GM3137447

    Loosen the nut (1) in the upper area.

  4. Adjust the torx stud to change the Y measurement at the waist line 3mm
  5. GM3137448

    Adjust the lower a-rail (1) for Z-direction in the middle of the measure of + 5 mm / - 8 mm.

  6. Adjust the b-rail (2) for Z-direction in the middle of the measure of + 5 mm / - 8 mm.
  7. GM3137450

    Adjust the window regulator screw (1) on the lower a-rail for Y-direction in the middle of the measure of 1.5 mm.

  8. Adjust the window regulator screw (2) on the lower b-rail for Y-direction in the middle of the measure of 1.5 mm / - 9 mm.
  9. Remove the front side door window. Refer to Front Side Door Window Replacement .
  10. GM3352040

    Mark the area around the window regulator retainer (1) when it is in center direction to the front side door window for better adjustment.

  11. Install the front side door window. Refer to Front Side Door Window Replacement .

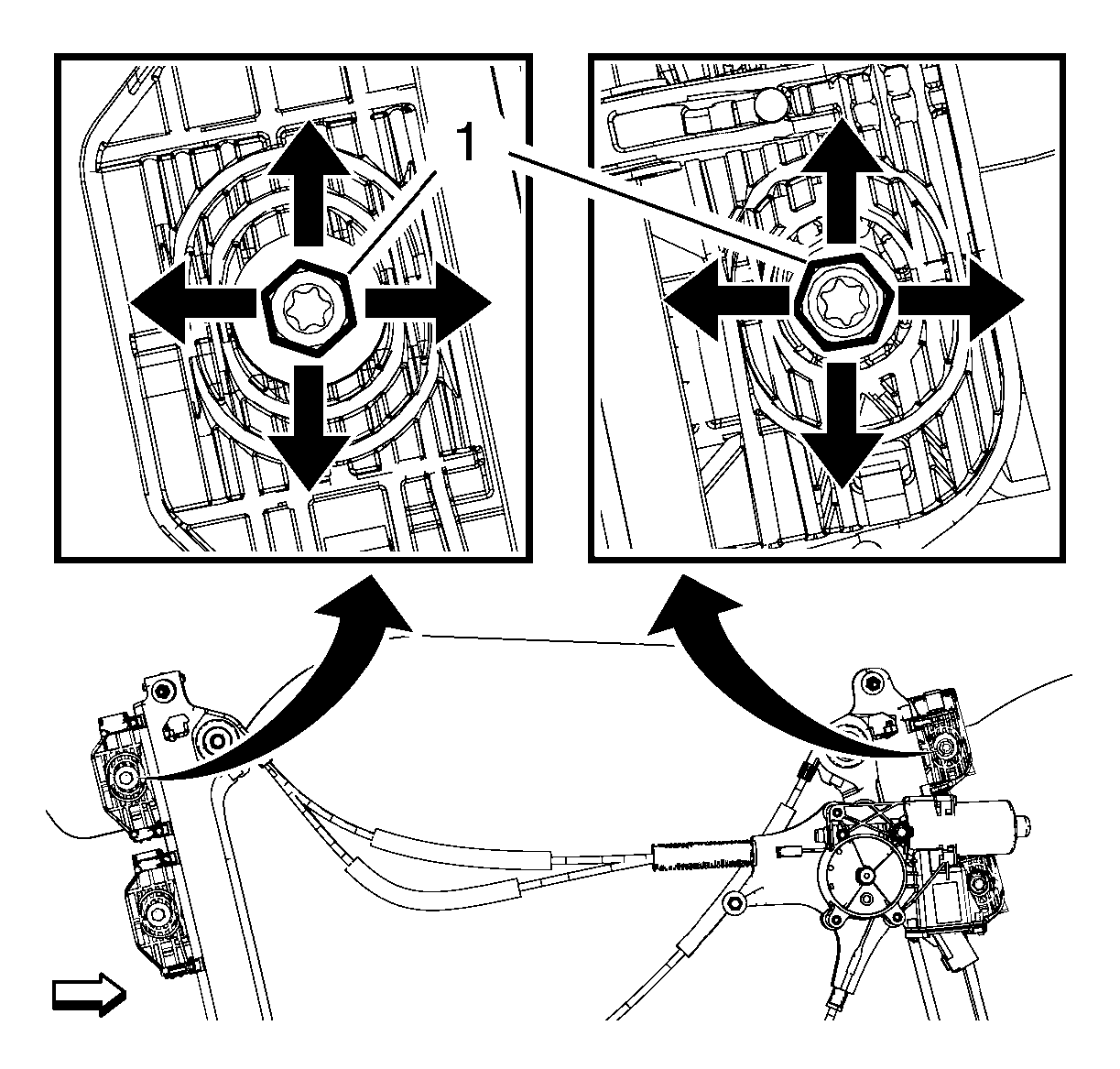

  12. GM3137451

    Open the door glass screws (1) at the a-rail and b-rail and adjust them to a measure of 5 mm to the folding top.

    13. CAUTION:

    Refer to Fastener Caution .

  13. Tighten the door glass screws 9 N.m (80 lb in).
  14. GM3137448

    If required, adjust the lower a-rail (1) and the b-rail (2) for Z-direction.

  15. GM3137450

    If required, adjust the window regulator screw (1) on the lower a-rail and the lower b-rail for Y-direction.

  16. GM3137447

    Align the torx stud to change the Y-measurement.

  17. Tighten the nut (1) in the upper area and tighten to 7 N.m (62 lb in).
  18. Check the front side door window alignment. Refer to Front Side Door Window and Quarter Window Alignment Measurement .
  19. Install the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
