Intake Manifold Removal

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

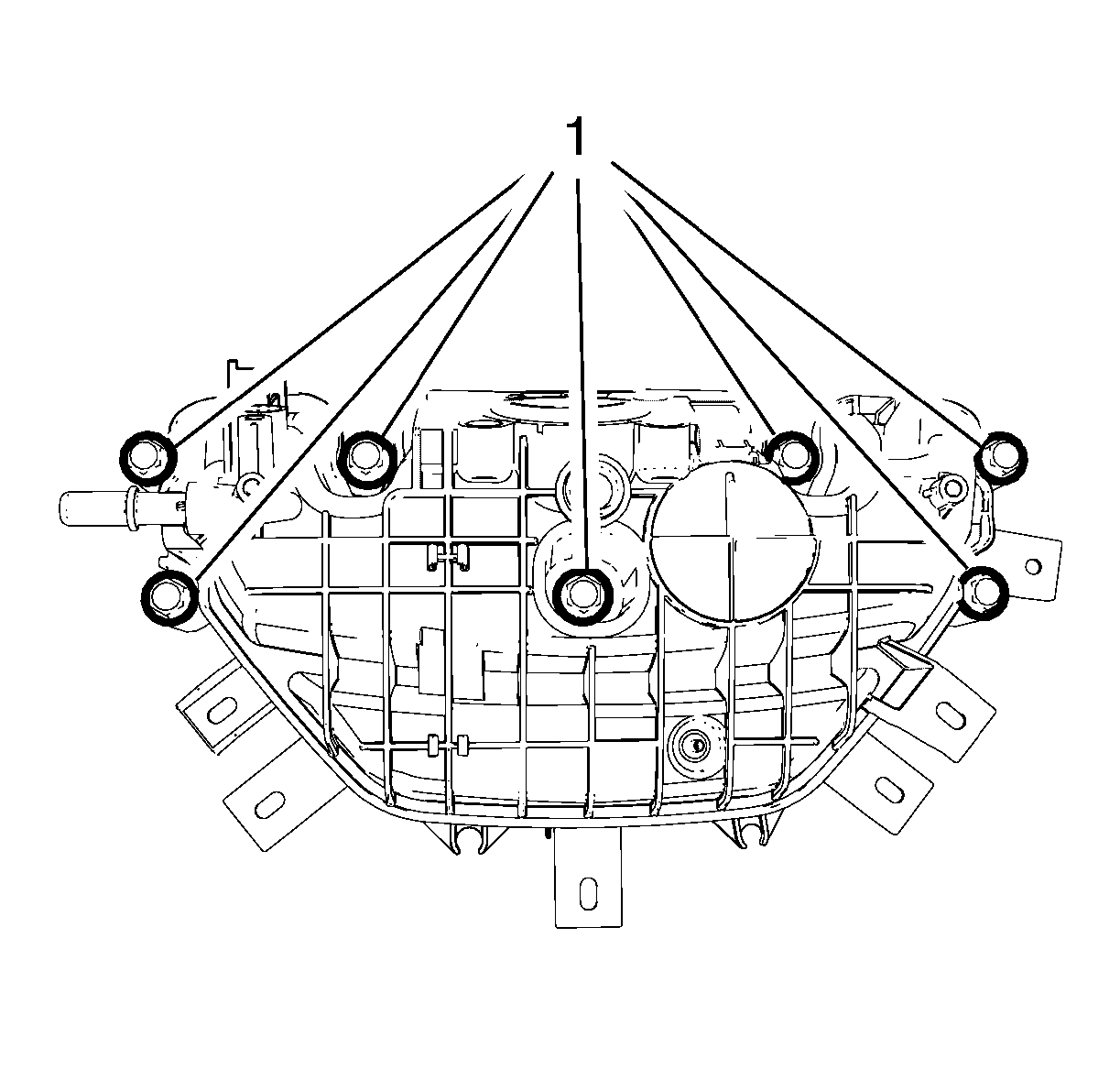

  1. GM2949003
    NOTE:

    The bolts remains at the intake manifold.

    Remove the 7 intake manifold bolts (1) from the cylinder head.

  2. GM2911709

    Remove the intake manifold (1).

  3. Remove and DISCARD the intake manifold seal (2).
