Fuel Injection Pump Removal

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM2914281

    Remove the fuel injection fuel feed pipe bracket bolt (4).

  2. Loosen the 2 nuts (2, 5).
  3. Remove the fuel injection fuel feed pipe (3) from the fuel rail (1) and from the fuel injection pump (6).

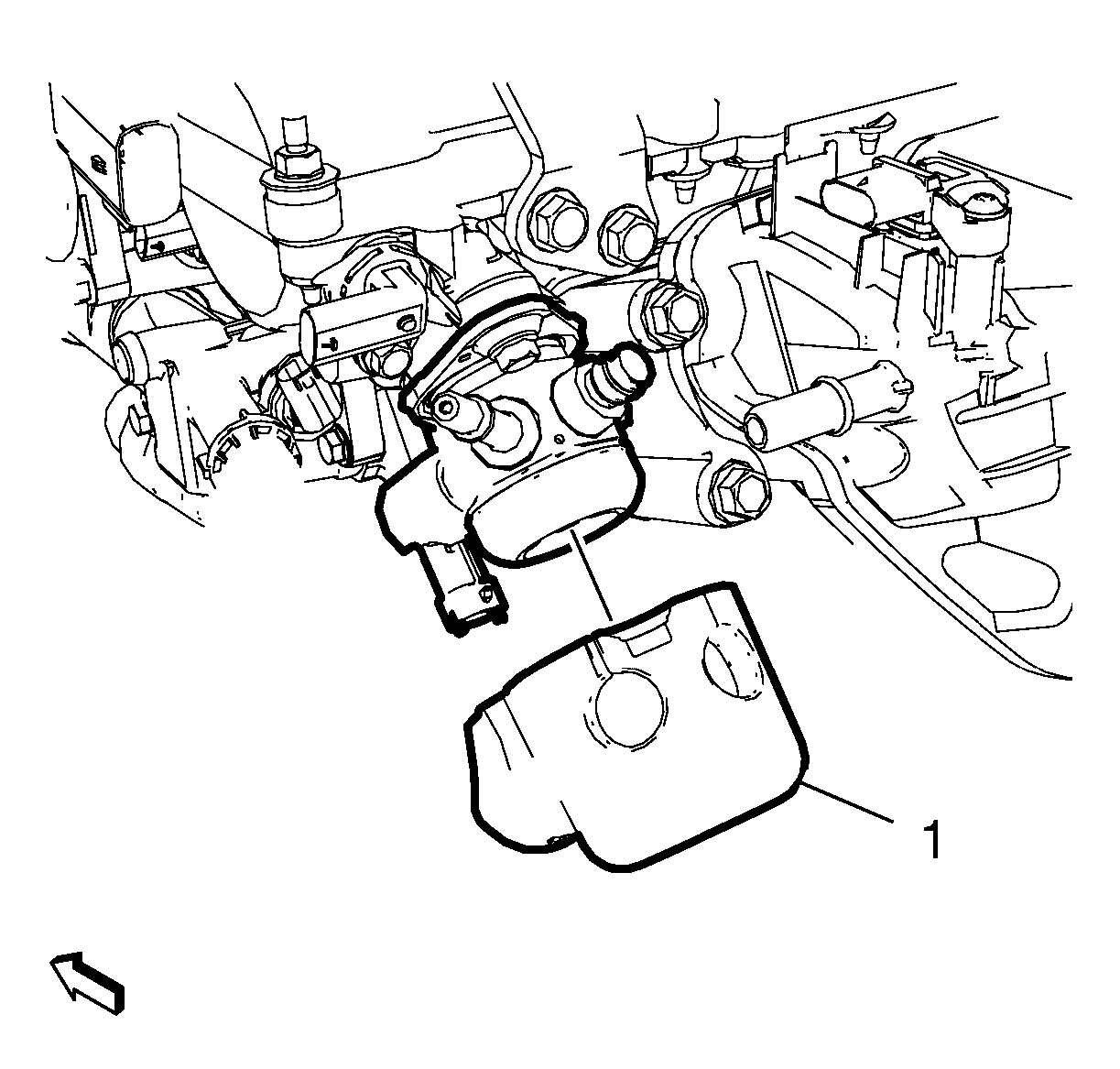

  4. GM2969127

    Remove the fuel injection pump cover (1).

  5. GM2969138

    Loosen the 2 fuel injection pump bolts (3) alternating in steps of turn.

  6. Remove the 2 fuel injection pump bolts.
    7. NOTE:

    Take care that during removal of the fuel injection pump the valve lifter (4) does not fall apart.

  7. Remove fuel injection pump (2).
  8. Remove the valve lifter (4).
  9. Remove and DISCARD the fuel injection pump gasket (1).
