Crankshaft Front Oil Seal Installation

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

EN-51152  Crankshaft Front Oil Seal Installer

For equivalent regional tools, refer to Special Tools .

  1. GM2968031

    Install the NEW crankshaft front oil seal (1) to the EN-51152  installer (2).

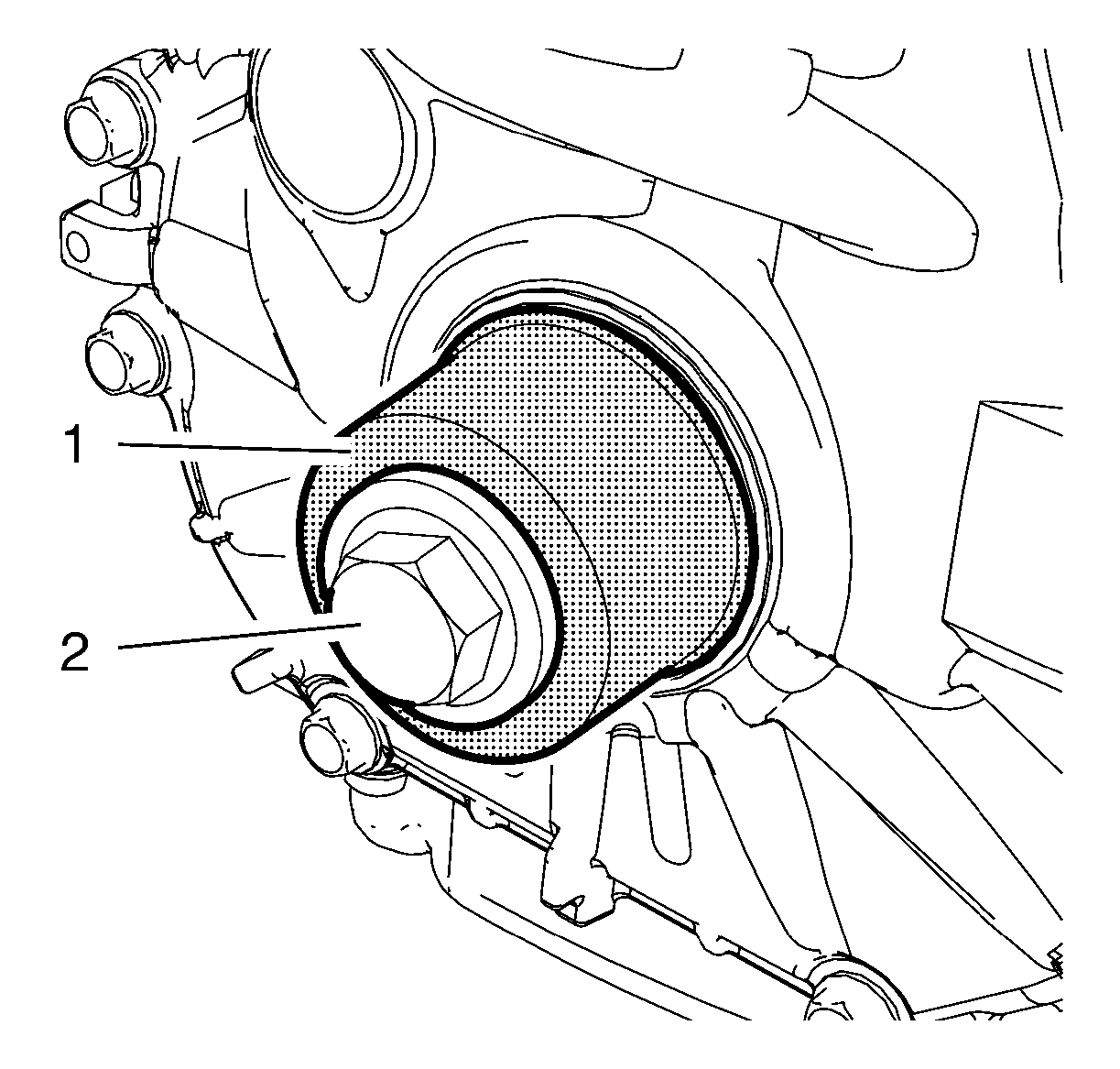

  2. GM2968030

    Using the EN-51152  installer (1) to install the crankshaft front oil seal to the engine front cover.

  3. Install the crankshaft balancer absorber bolt (2) and tighten.
  4. Remove the bolt (2) and EN-51152  installer (1).
  5. GM3011801

    Ensure that the crankshaft front oil seal (1) flushes with the engine front cover (2).
