Camshaft Position Actuator Solenoid Valve Solenoid Installation - Intake

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

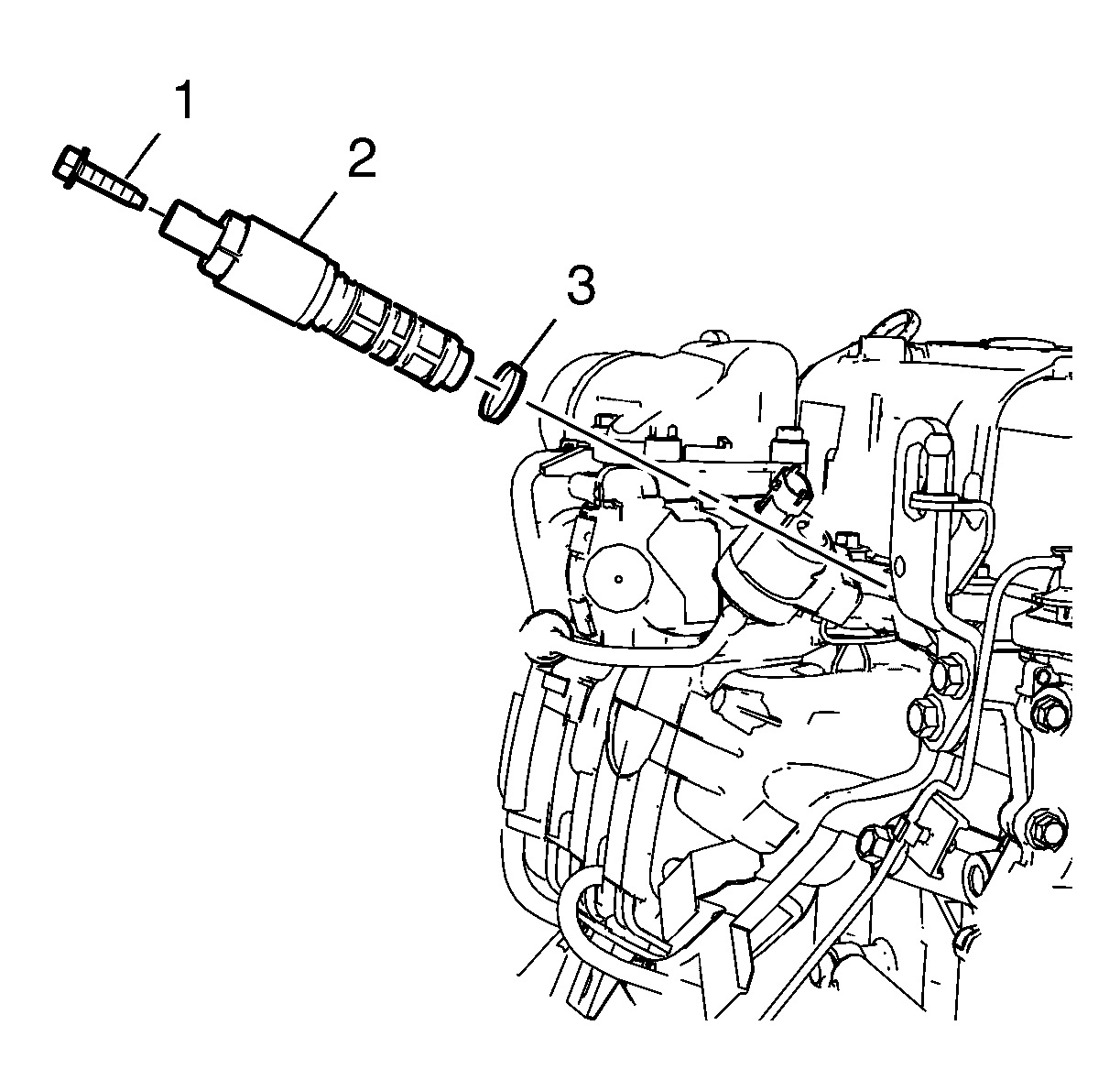

  1. GM3137479

    Install a NEW camshaft position actuator solenoid valve seal (3).

  2. Install the camshaft position actuator solenoid valve (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the camshaft position actuator solenoid valve bolt (1) and tighten to 10 N.m (89 lb in).
