Camshaft Position Actuator Adjuster Removal
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
EN-51148 Camshaft Holding Tool
For equivalent regional tools, refer to Special Tools .

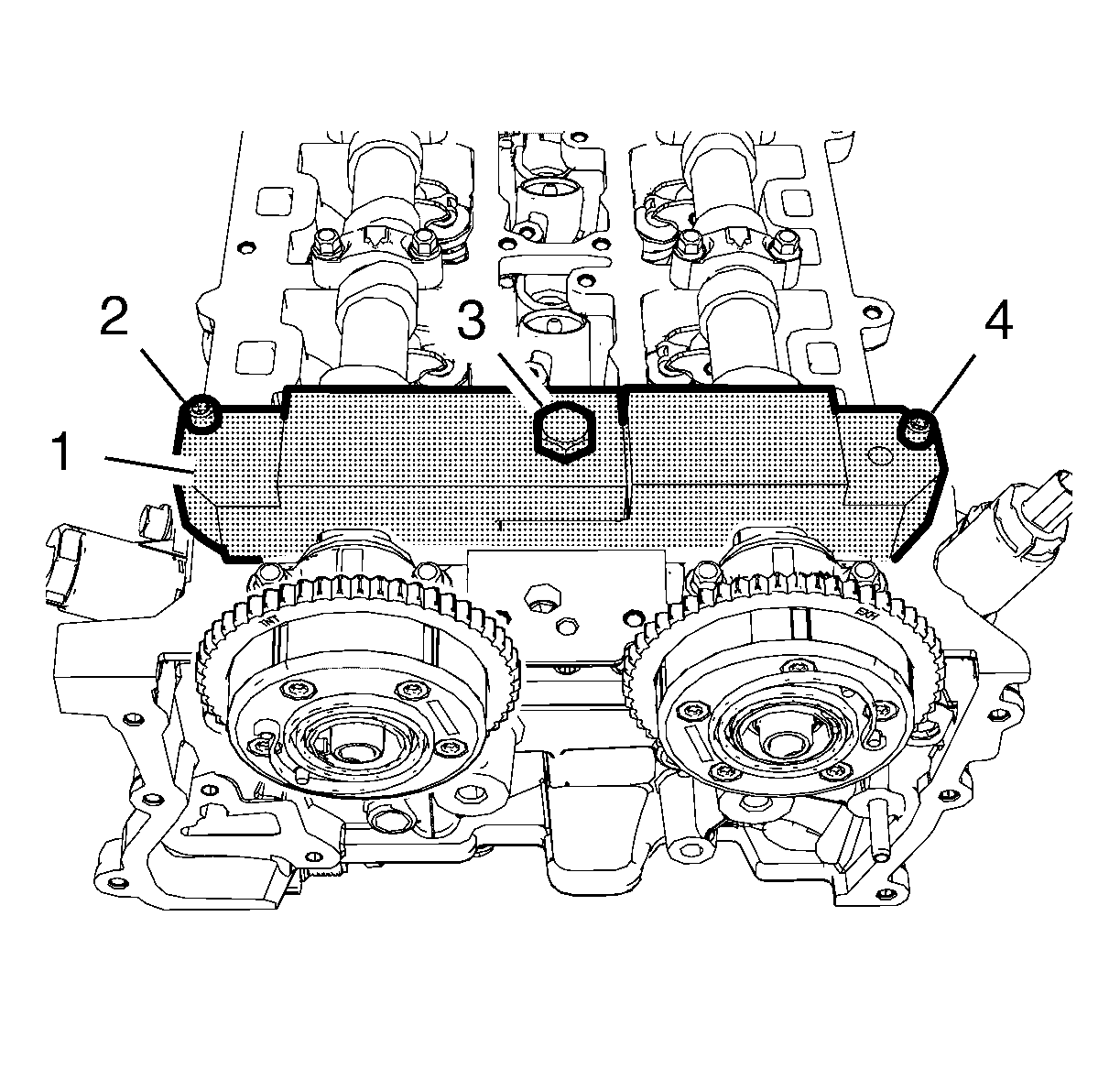

Install the EN-51148 holding tool (1) to the camshafts and to the cylinder head.
- Tighten the middle bolt (3).
- Tighten the 2 outer bolts (2, 4).
Remove the camshaft position actuator adjuster bolt (3).
- Remove the intake camshaft position actuator (1).
Remove the camshaft position actuator adjuster bolt (3).
- Remove the exhaust camshaft position actuator (2).
