Folding Top Stowage Compartment Lid Latch Striker Replacement
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

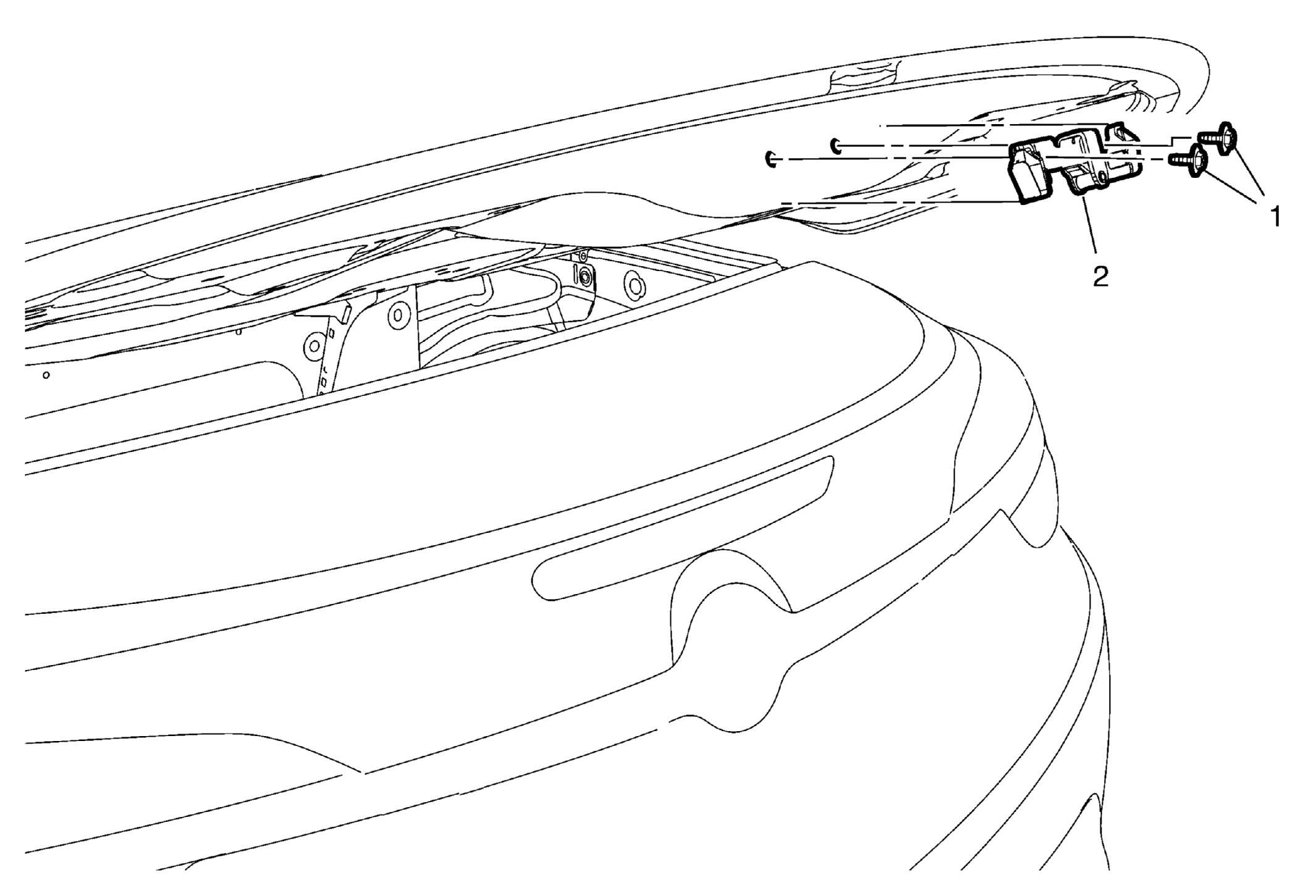

| Callout | Component Name |
|---|---|
| Preliminary Procedure Bring the folding top into position 2 respectively position 3. Refer to Folding Top Positions Overview . |
|
| 1 | Folding Top Stowage Compartment Lid Latch Striker Bolts (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure Mark the position of the folding top stowage compartment lid latch striker on the folding top stowage compartment lid prior to removal. Tighten 9 N.m (80 lb in) |
| 2 | Folding Top Stowage Compartment Lid Latch Striker |
