Folding Top Stowage Compartment Cover Rear Molding Replacement
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

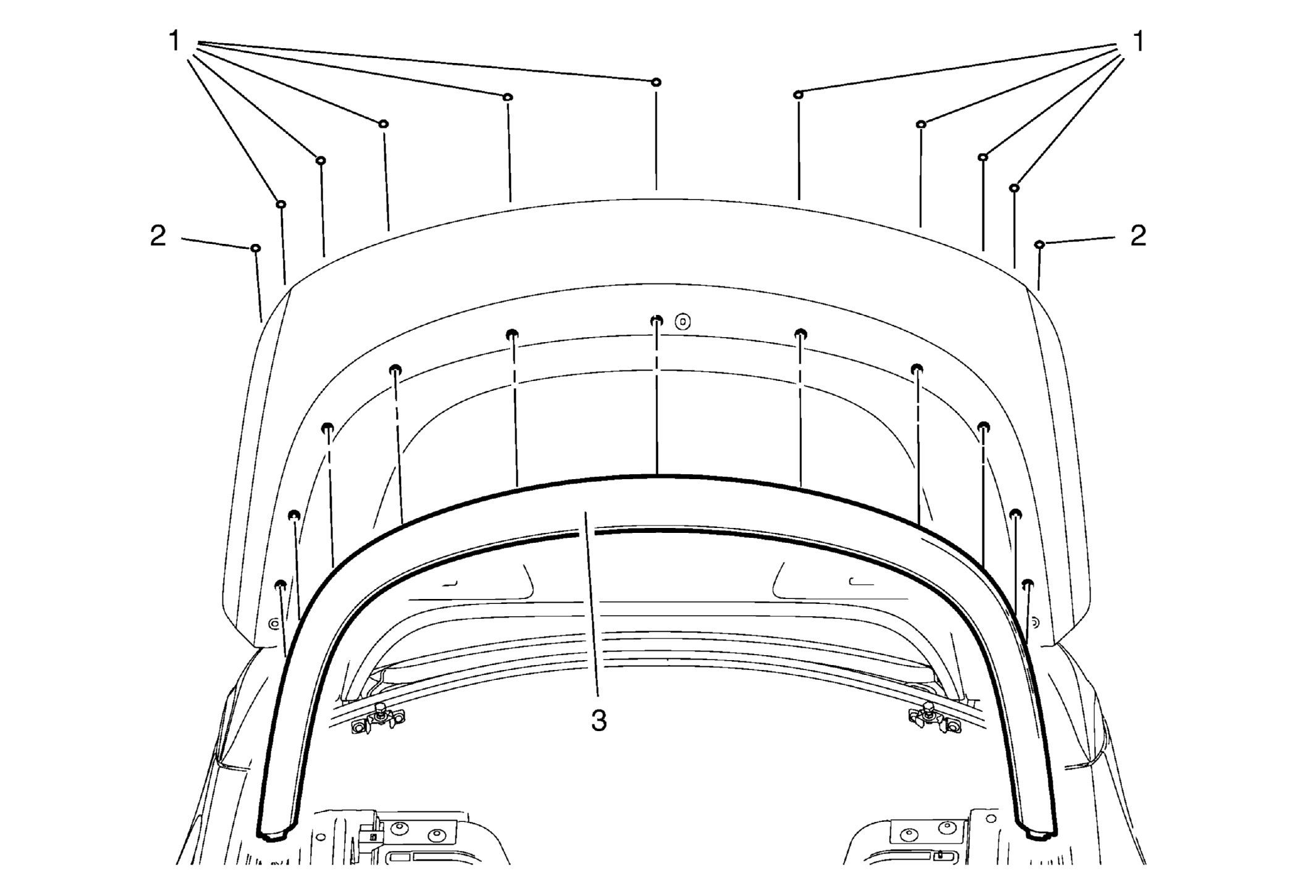

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Bring the folding top into position 2 respectively position 3. Refer to Folding Top Positions Overview .When the folding top is opening or closing, people can be injured by the parts that move: the hardtop and its mechanism, the rear compartment, and the side windows. Keep people away from these parts when you are lowering or raising the top to avoid personal injury or vehicle damage. |
|
| 1 | Folding Top Stowage Compartment Cover Rear Molding Nuts (Qty: 9) Tighten 8N.m (71 lb in) |
| 2 | Folding Top Stowage Compartment Cover Rear Molding Outer Nuts (Qty: 2) Procedure To gain access to the nuts, move the folding top to a suitable position and secure the folding top with the aid of an assistant. Tighten 8N.m (71 lb in) |
| 3 | Folding Top Stowage Compartment Cover Rear Molding |
