Folding Top Stowage Compartment Cover Hinge Release Cable Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

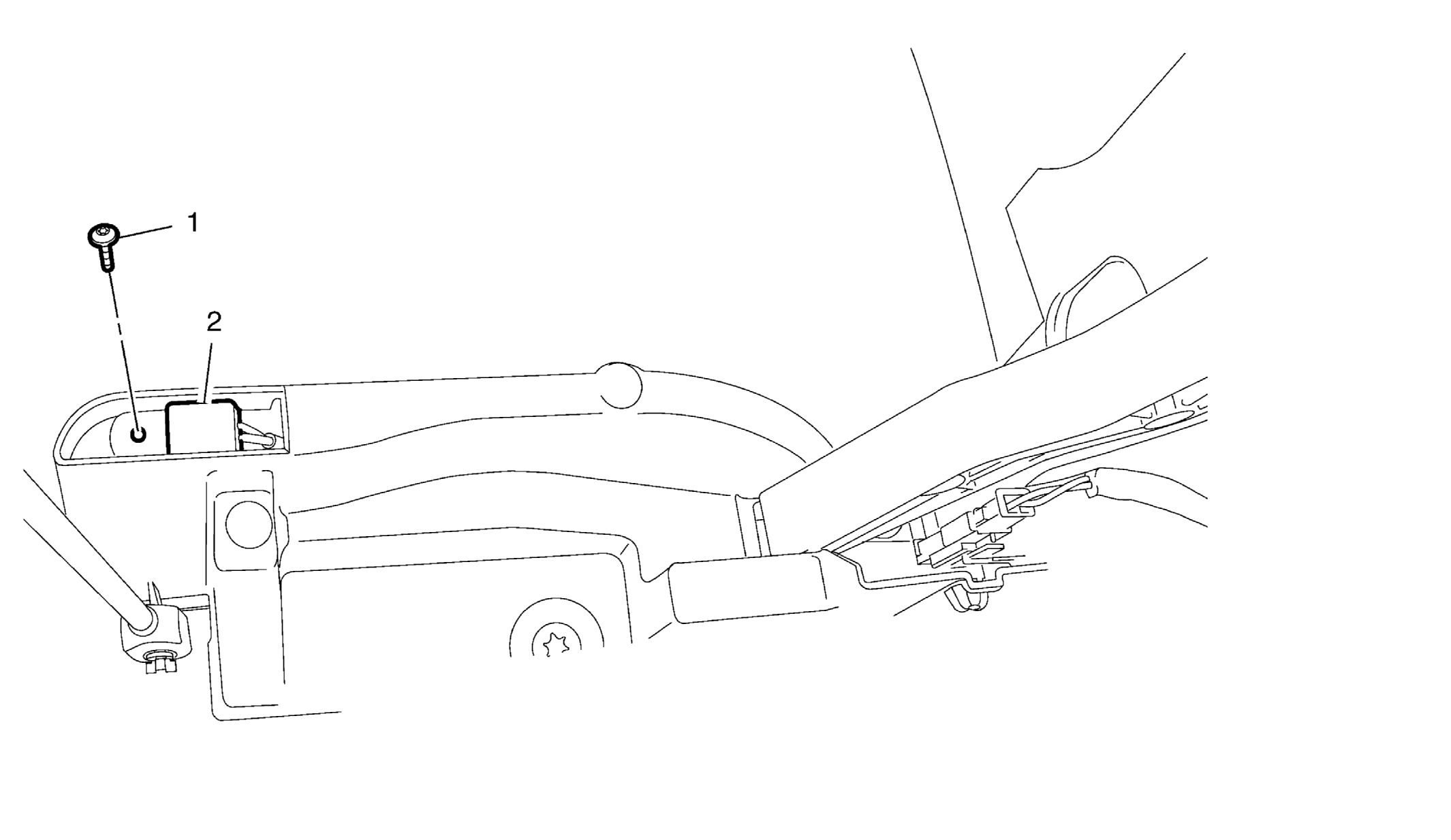

Callout	Component Name
Preliminary Procedure Remove the folding top stowage compartment. Refer to Folding Top Stowage Compartment Replacement . Disconnect the electrical connector.
1	Folding Top Stowage Compartment Cover Hinge Release Cable Bolt CAUTION: Refer to Fastener Caution . Procedure Loosen the folding top stowage compartment cover hinge release cable bolt. Tighten 9 N.m (80 lb in)
2	Folding Top Stowage Compartment Cover Hinge Release Cable Sensor.

Callout

Component Name

Preliminary Procedure

Remove the folding top stowage compartment. Refer to Folding Top Stowage Compartment Replacement .
Disconnect the electrical connector.

Folding Top Stowage Compartment Cover Hinge Release Cable Bolt

CAUTION:

Refer to Fastener Caution .

Procedure
Loosen the folding top stowage compartment cover hinge release cable bolt.
Tighten
9 N.m (80 lb in)

Folding Top Stowage Compartment Cover Hinge Release Cable Sensor.
