Removal Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open all of the windows.
  2. Place the folding top in position 2 - Folding Top Positions Overview

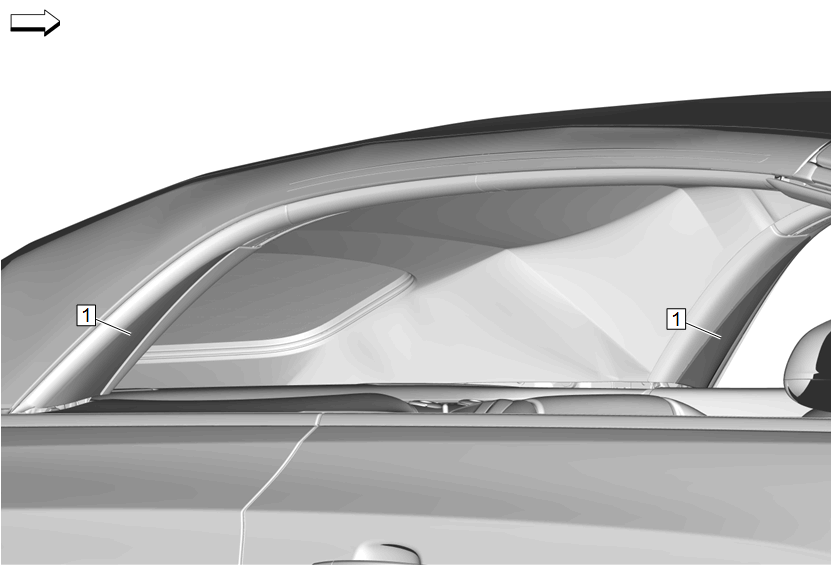

  3. GM4992582

    Push upward to remove both roof rail rear covers (1).

  4. GM4992613

    Folding top rear weatherstrip (1) - Remove

    NOTE:

    The weatherstrip retainers might be on the weatherstrip after removal.

  5. Weatherstrip retainers (2) - Remove[4x]
