Removal Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp. Refer to Headlamp Replacement .
  2. GM2190681

    There are 5 replacement brackets (1) on each headlamp.

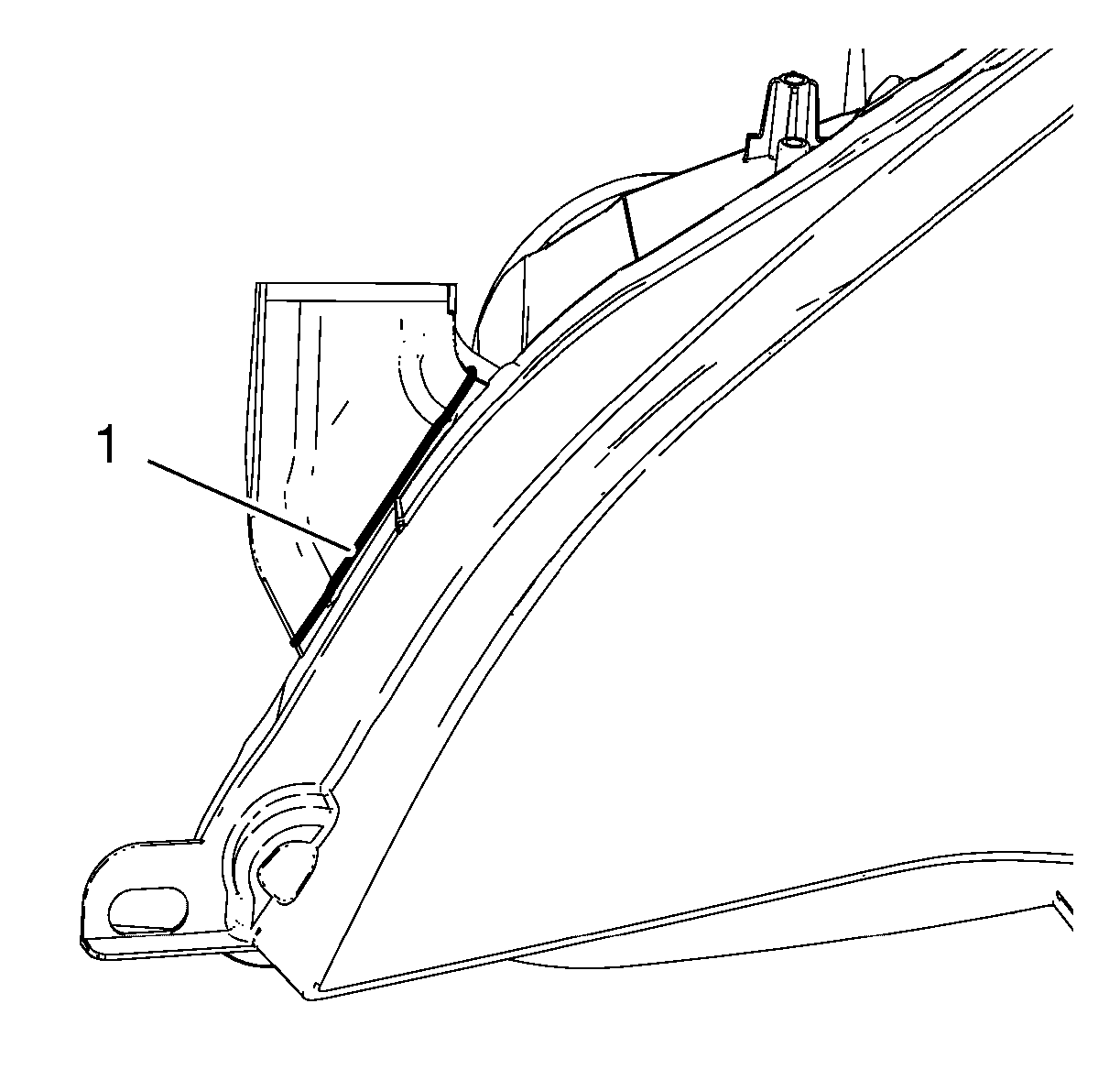

  3. GM2190682

    Bracket 1: Cut the bracket along the marked line (1) on the housing.

  4. GM2190685

    Bracket 2: Cut the bracket along the marked gluing channel (1).

  5. GM2190687

    Bracket 3: Cut the bracket along the marked line (1) on the housing.

  6. GM2190690

    Bracket 4: Cut the bracket along the marked line (1).

  7. GM2190691

    Bracket 5: Cut the bracket along the marked geometry (1) on the housing.
