Brake Pedal Position Sensor Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

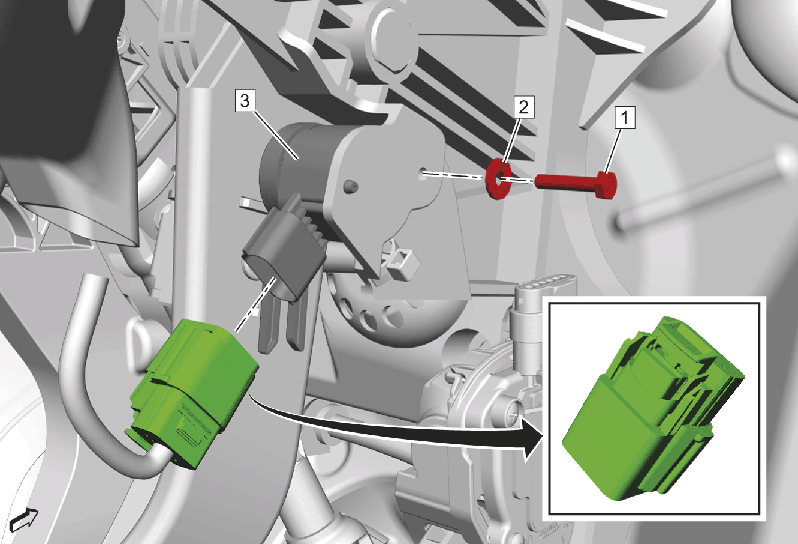

Callout	Component Name
1	Brake Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution .
2	Brake Pedal Position Sensor Washer
3	Brake Pedal Position Sensor Procedure Disconnect electrical connector. After the installation is complete, learn the brake position sensor sensor. Refer to Brake Pedal Position Sensor Calibration .

Callout

Component Name

Brake Pedal Position Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Brake Pedal Position Sensor Washer

Brake Pedal Position Sensor

Procedure

Disconnect electrical connector.
After the installation is complete, learn the brake position sensor sensor. Refer to Brake Pedal Position Sensor Calibration .
