X350 Fuel Tank Harness to Body Harness

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
GM655811Courtesy of GENERAL MOTORS COMPANY

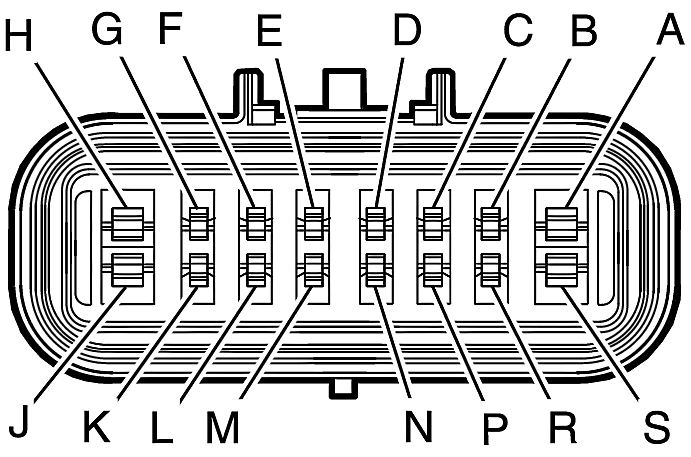

GM1334523Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Fuel Tank
  • OEM Connector: 15326084
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 16-Way F 150, 280 GT Series, Sealed (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 15326057
  • Service Connector: 88987519
  • Description: 16-Way M 1.5, 2.8 GT Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-14 (GN) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-4A (PU) No Tool Required Not Required Not Required Not Required Not Required
III 13575443 J-35616-5 (PU) J-38125-553 15304732 Delphi 8 A 5
IV 13576364 J-35616-3 (GY) J-38125-553 15326269 Delphi 19 E 1
V 13576364 J-35616-3 (GY) J-38125-553 15326269 Delphi 19 E 4
VI 13580826 J-35616-5 (PU) J-38125-553 15304731 Delphi 19 E 5
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
A 2.5 GY 120 II - Fuel Pump Control A 1.5 GY 120 III -
B 0.5 BU/VT 1589 I - Primary Fuel Level Sensor Signal B 0.5 BU/VT 1589 V -
C - - - - - Not Occupied C - - - - -
D 0.5 BN/RD 2709 I - Fuel Tank Pressure Sensor 5V Reference D 0.5 YE/RD 2709 V -
E 0.5 BU/WH 890 I - Fuel Tank Pressure Sensor Signal E 0.5 BU/WH 890 V -
F 0.5 BK/WH 6281 I - Fuel Level Sensor Low Reference F 0.5 BK/GN 6281 V -
G - - - - - Not Occupied G - - - - -
H 0.5 BN/RD 7445 II - Fuel Line Pressure Sensor 5V Reference H 0.5 BN/RD 7445 VI -
J - - - - - Not Occupied J - - - - -
K 0.5 BU/BN 7446 I - Fuel Line Pressure Sensor Signal K 0.5 BU/WH 7446 V -
L 0.5 BK/YE 7447 I - Fuel Line Pressure Sensor Low Reference L 0.5 BK/YE 7447 V -
M 0.75 RD/BU 542 I - Battery Positive Voltage M 1 RD/VT 542 IV -
N 1 WH 1310 I - EVAP Canister Vent Solenoid Control N 1 WH 1310 IV -
P - - - - - Not Occupied P - - - - -
R 0.5 BK/GN 6281 I - Fuel Level Sensor Low Reference R 0.5 BK/GN 6281 V -
S 2.5 BK/GN 1580 II - Fuel Pump Low Reference S 1.5 BK/GN 1580 III -
