Front Seat Tilt Adjuster Lever Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

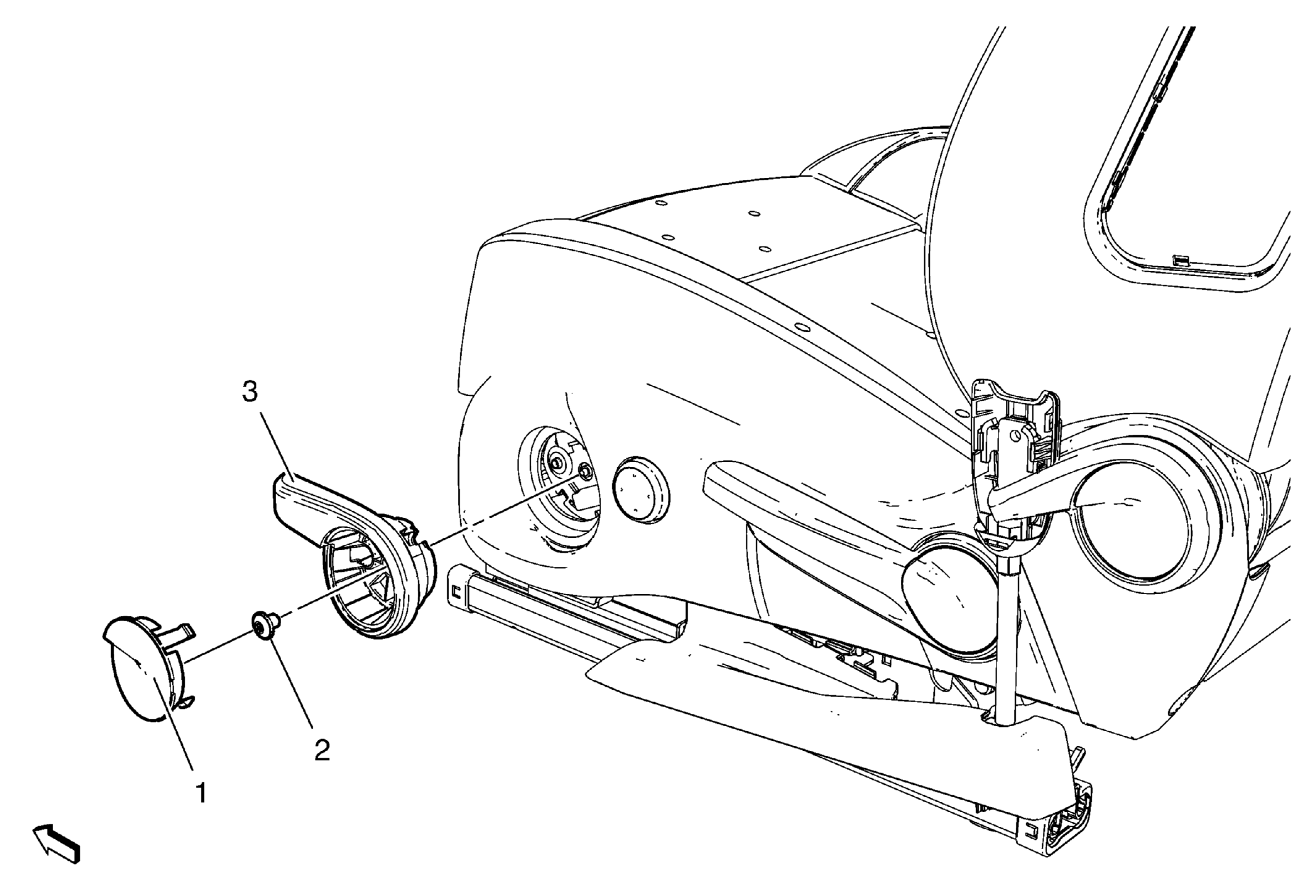

GM2191302
Callout Component Name
1 Front Seat Tilt Adjuster Lever Bolt Cap
2 Front Seat Tilt Adjuster Lever Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
20 N.m (15 lb ft)
3 Front Seat Tilt Adjuster Lever
Procedure
Use a small flat-bladed tool to release the front seat tilt adjuster lever bolt cap.
