Removal Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Instrument Panel Lower Extension Compartment Panel - Remove - Instrument Panel Lower Extension Compartment Panel Replacement
  2. Floor Front Air Outlet Duct - Right Side - Remove - Floor Front Air Outlet Duct Replacement - Right Side

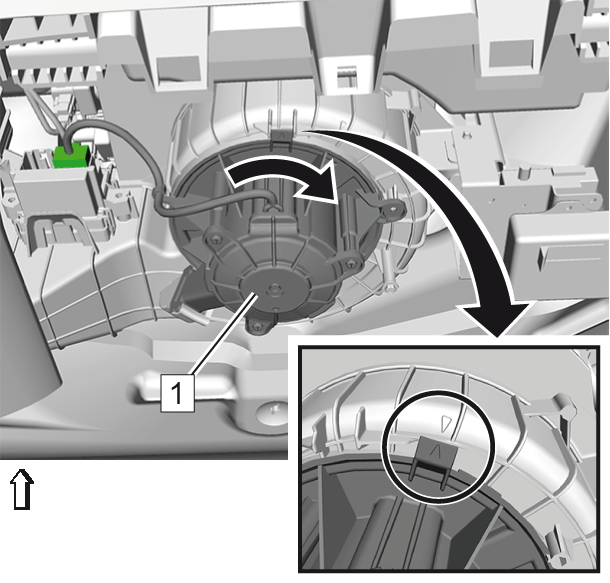

  3. GM4554281

    Unlock the blower motor (1) in direction of the arrow.

  4. GM4554283

    Blower Motor Bolt(1) - Remove

  5. Disconnect the electrical connector.
