Installation Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use NEW O-ring seals. Refer to Air Conditioning O-Ring Seal Replacement .
  2. Install the air conditioning compressor and the condenser hose.

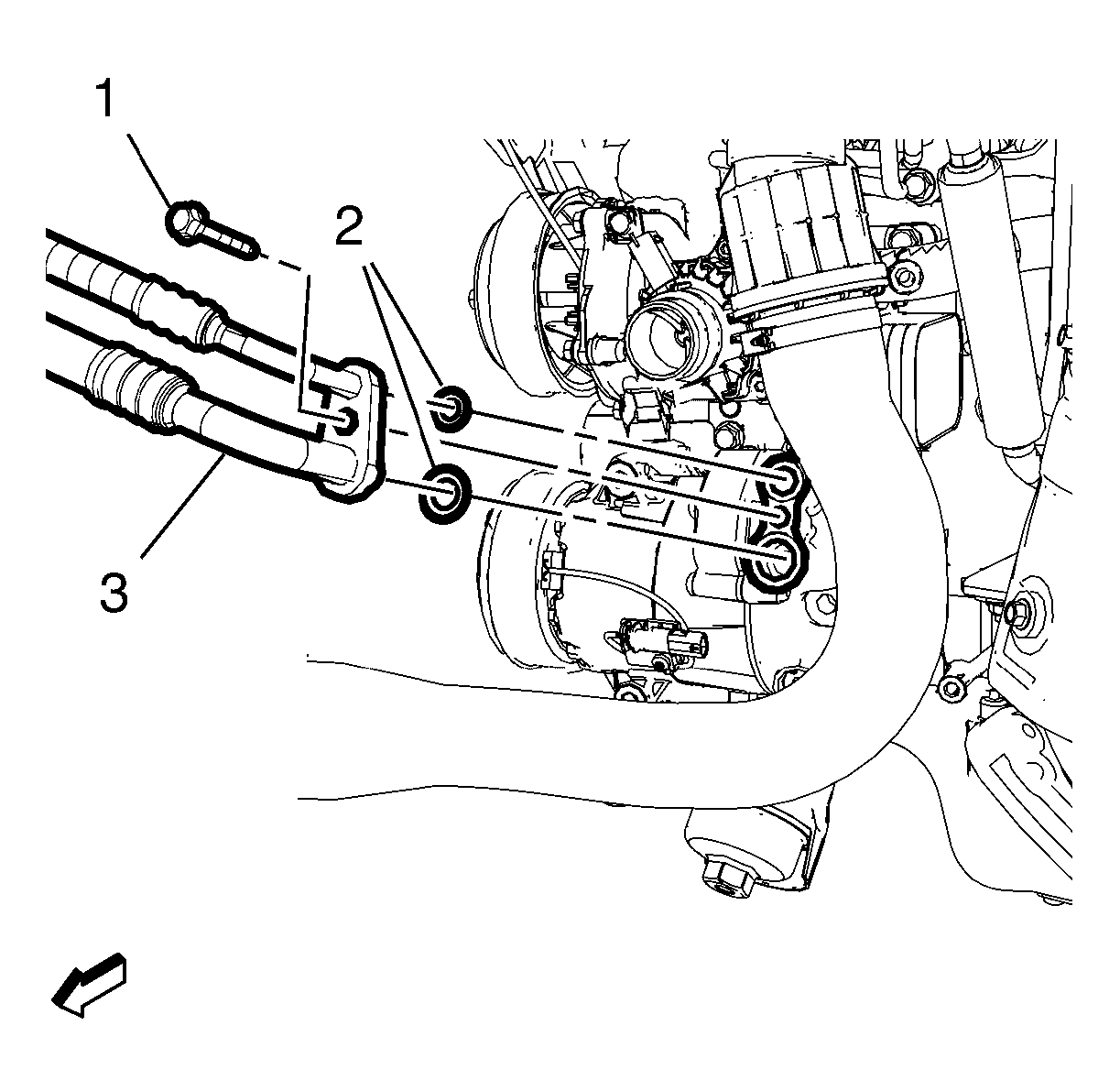

  3. GM2750540
    CAUTION:

    Refer to Fastener Caution .

    Install the air conditioning compressor and the condenser hose bolt (1) and the air conditioning compressor and the condenser hose seal (2) and tighten to 19 N.m (14 lb ft).

  4. GM2189353

    Install the air conditioning compressor and the condenser hose nut (3) to the A/C condenser (4) and tighten to 19 N.m (14 lb ft).

  5. Install the air conditioning compressor and the condenser hose nut (1) to the refrigerant hose (2) and tighten to 19 N.m (14 lb ft).
  6. Install the radiator outlet hose. Refer to Radiator Outlet Hose Replacement .
  7. Install the headlamp - right side. Refer to Headlamp Replacement .
  8. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  9. Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging .
  10. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
