Air Conditioning Compressor Oil Drain Plug Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .

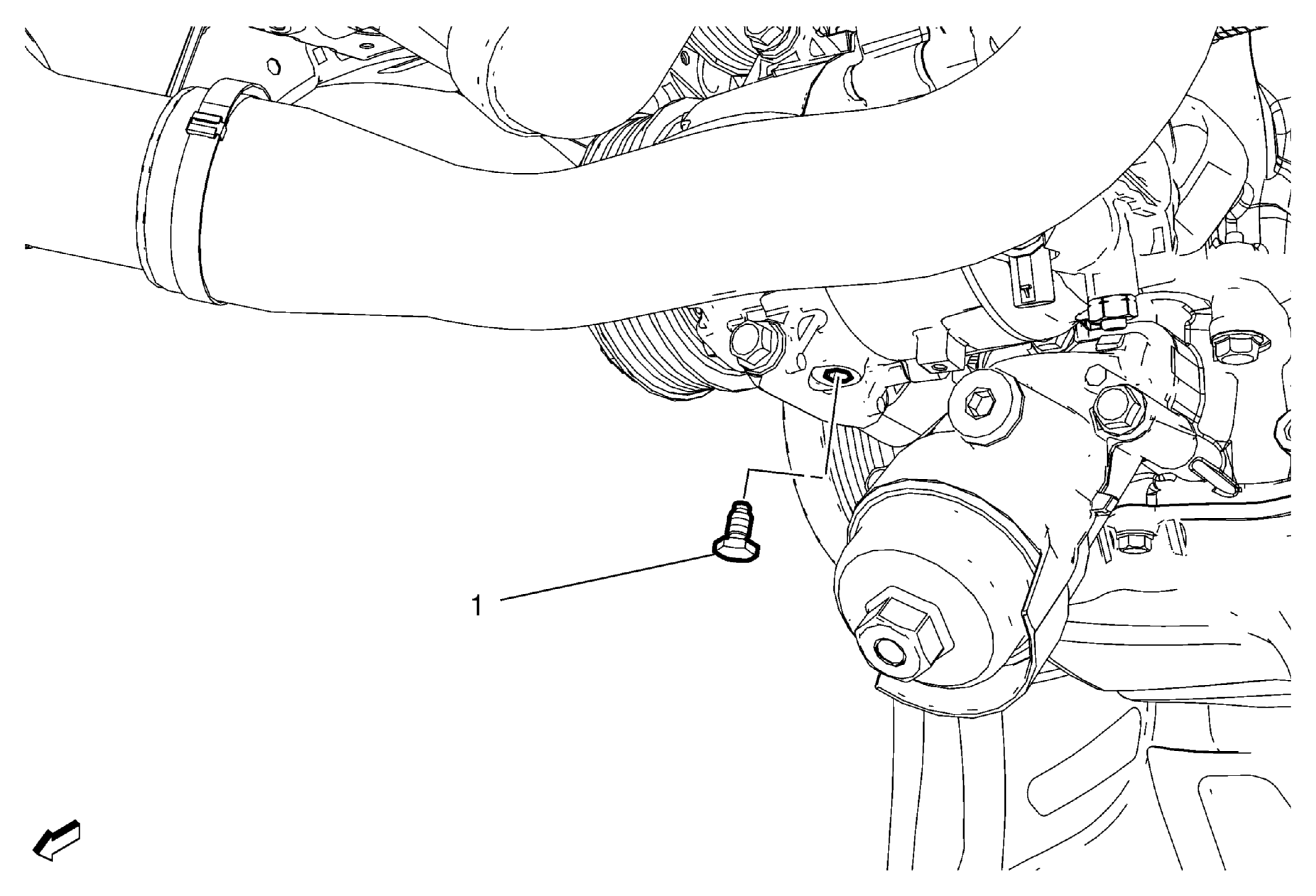

1	Air Conditioning Compressor Oil Drain Plug CAUTION: Refer to Fastener Caution . Tighten 15 N.m (11 lb ft)

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .

Air Conditioning Compressor Oil Drain Plug

CAUTION:

Refer to Fastener Caution .

Tighten
15 N.m (11 lb ft)
